Cuisinart DLC-10S Pro Classic 7-Cup Food Processor Power Cord Replacement

Written By: Reagan Burns
  • Comments: 4
Cuisinart DLC-10S Pro Classic 7-Cup Food Processor Power Cord Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 30 minutes

Introduction

  1. McO6OX6i12FPOlwf

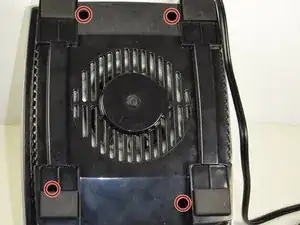

    • Use a screwdriver to remove the four screws that are next to the grip pads on the bottom of the motor base.

  2. bgh2ccIJyeX5YVkI

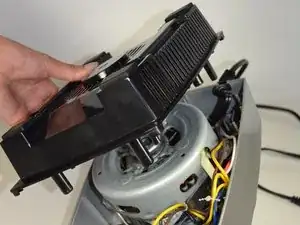

    • Remove the black plastic covering from the motor base.

  3. yMy26NrKSRybAh12

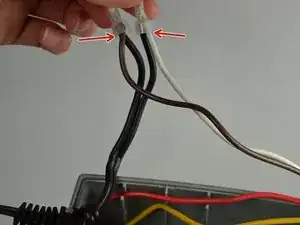

    • Locate the connections between the power cord and the brown and white wires. Cut off these connections.

  4. Z66UtJlYl13WDRJZ

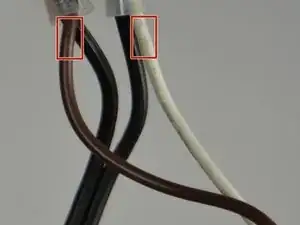

    • Strip the plastic coating off the edge of the brown and white wires using a wire stripper.

  5. WsBCRHYwdewr4YDY

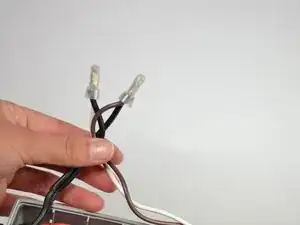

    • Create a connection between the brown and white wires and the wires of the new power cord by soldering them together.

  6. NCtESMqC4NClJsqm

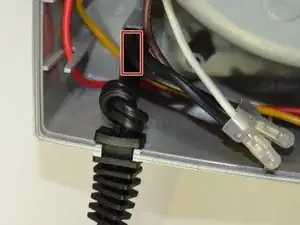

    • Fit the wires back into the motor base and place the new power cord in the slot.

Conclusion

By the end of this guide< you will have successfully replaced the power cord to your device.

Author

Reagan Burns

Member since: 02/04/15

119 Reputation

4 comments

I can't get a replacement cord from cuisinart. Where can I buy one the same?

Elizabeth -

I need one also. drshtender1@gmail.com

Feivel Garnick -

Where can you buy the replacement cord?

ruby48lp -

There's not an exact replacement from Cuisinart, but a two prong replacement will work. I found one "Lamp Cord Set - Black - PLT 56-1854-50 | 1000Bulbs.com" https://www.1000bulbs.com/product/137344... that would work.

Riley Carns -
