Introduction

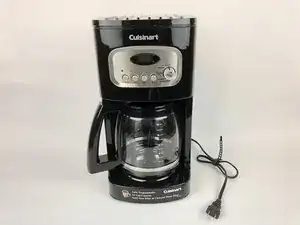

In this guide you will learn how to replace the Cuisinart DCC-1100 Heating Element if you are having issues with the device heating up. Please have a replacement heating element ready and potentially extra thermal paste. Also unplug the machine before beginning work.
Tools
-

                  -

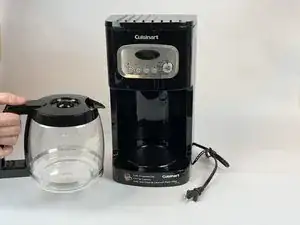

            Remove the coffee pot and unplug the maker.
-

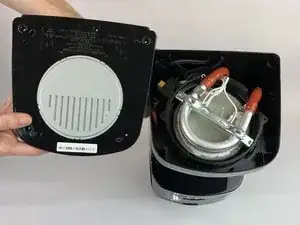

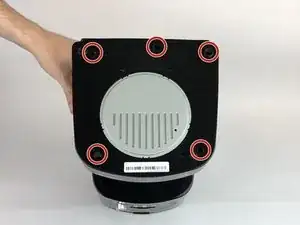

            Flip the coffee maker over so that way the bottom is facing you.

-

-

                  -

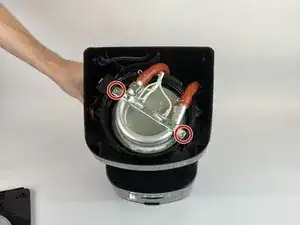

            Remove the two 1.6mm Phillips #0 screws from the heating element.
-

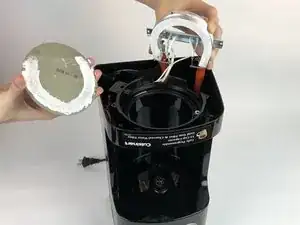

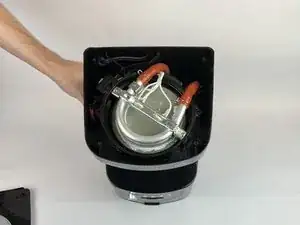

            Lift up the heating element and remove the hot plate.

-

-

                  -

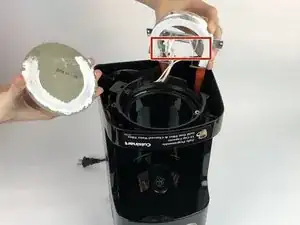

            Disconnect the heating element.
-

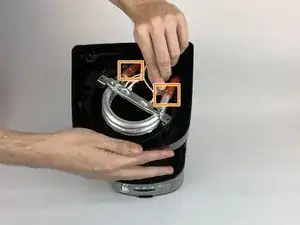

            Pinch the tube clips and remove from tubes from the heating element.

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
