Introduction
This guide will demonstrate how to replace the blade in your Crain 775 Jamb Saw.
Tools
Parts
-
-

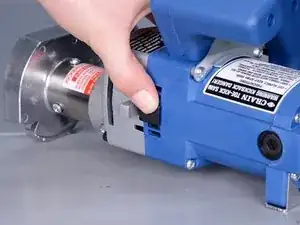

Depress the spindle lock button to prevent the blade from spinning when you unfasten it.
-

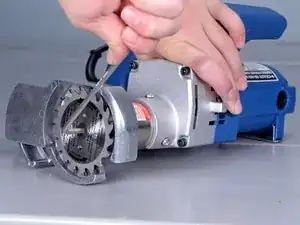

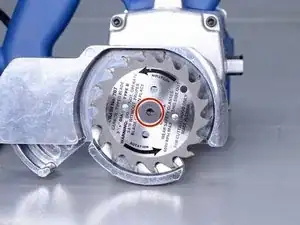

While depressing the spindle lock, use a 3/16 hex key to remove the socket set screw securing the blade in place.
-
-
-

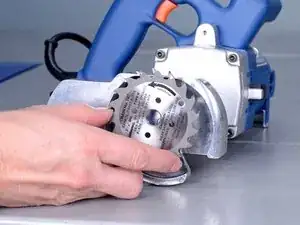

Remove the blade.
-

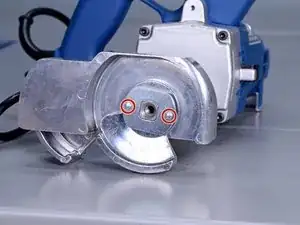

When replacing with a new blade, ensure the two pegs on the face of the rotor mate with the holes in the blade.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
