Corded Belt Sander Dexter - 900BS2.5 Removable Casing Replacement

Written By: Céline Chemineau
  • Comments: 0
Corded Belt Sander Dexter - 900BS2.5 Removable Casing Replacement

Difficulty

Easy

Steps

9

Time Required

5 minutes

Introduction

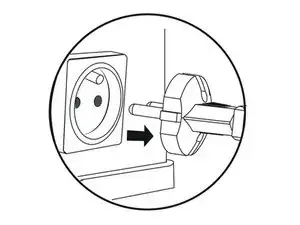

  1. YDnVXNFpKEnturQe

    • Before you begin, remember to disconnect the mains plug.

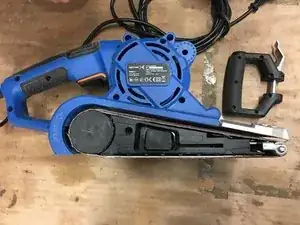

  2. LJOpyfFKBjNh4CkM
    LJOpyfFKBjNh4CkM
    JUTkdxNLsKMab6Hy
    LAppBGagnNCCpvU3

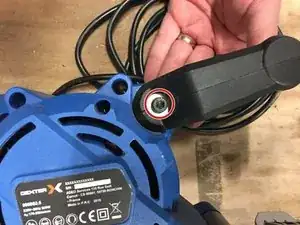

    • Remove the handle, by unscrewing the screw.

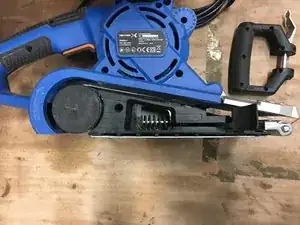

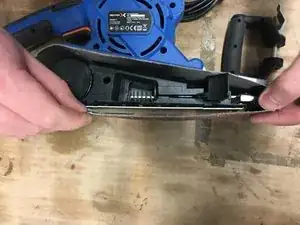

  3. Nff42jfCguje1dTC
    Nff42jfCguje1dTC
    pAZ5Sgof4OfSl6vg

    • Pry up the belt.

  4. Wr2rDf5vskYGrAwK
    Wr2rDf5vskYGrAwK
    FUMehRlbpCuHDrDo

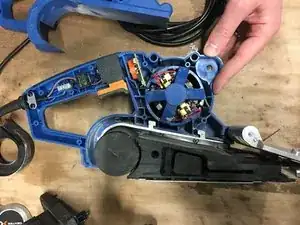

    • Remove the screws to open the housing.

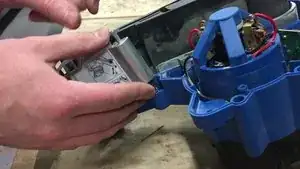

  5. Remove the front belt cover from the machine.

    • Remove the front belt cover from the machine.

    • Remember to keep the spring from the old part.

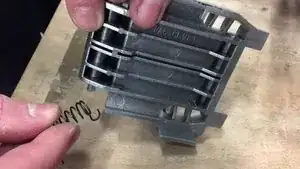

  6. Place the spring on the new part.

    • Place the spring on the new part.

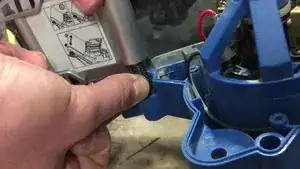

  7. Replace the new belt cover in its place.

    • Replace the new belt cover in its place.

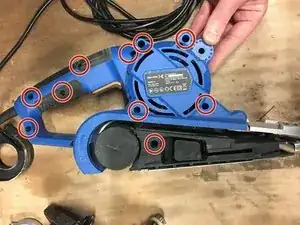

  8. DtvkrtkmiFlxHhrK

    • Close the device and put back the screws.

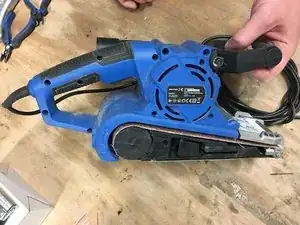

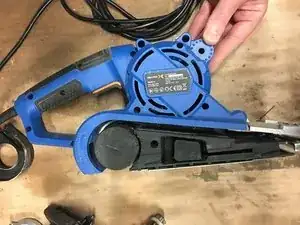

  9. qcrTiYUvWSMlvJgm
    qcrTiYUvWSMlvJgm
    TbARR4aT5jfSjEOW

    • Gather tools: screwdriver, pliers, new parts Prioritize safety: wear gloves and glasses. Disconnect power for safety Remove covers blocking access Remove old parts: release belt tension, unscrew handle. Install new parts: secure belt, attach handle. Tighten and test for stability. Reassemble covers. Reconnect power if needed. Test functionality.
