Conair Infiniti Pro Model 259NP Heat Shield Replacement

Written By: Timothy Lo
  • Comments: 1
Conair Infiniti Pro Model 259NP Heat Shield Replacement

Difficulty

Easy

Steps

7

Time Required

10 - 15 minutes

Introduction

If your hair dryer's nozzle is overheating, this guide will show you how to replace the heat shield.

  1. FxfpZBxiRvLwosUs

    • Caution: Unplug the hair dryer before attempting this guide. Leaving the device plugged in may result in electrocution and damage to the device.

    • Hold the hair dryer by the handle so that the back panel faces up.

  2. iiYalPNNIvRkI4iY
    iiYalPNNIvRkI4iY
    ImOAZMefOsIVRdpW

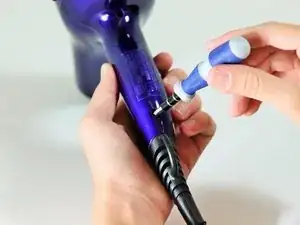

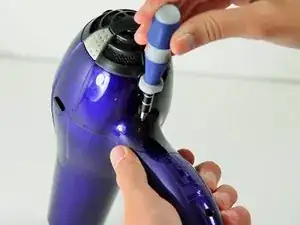

    • Remove the two 15.875 mm Phillips #2 screws from the back panel.

  3. CAR2JcQOQZDVgYoY
    CAR2JcQOQZDVgYoY
    vVb6TaApTJjKhYIt
    giEeBaHPqXdQMifY

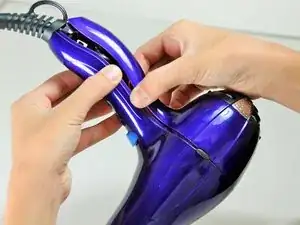

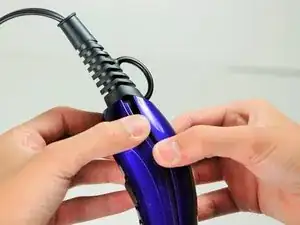

    • Starting from where the cord attaches to the handle, pull apart the two plastic panels.

    • Continue separating the back panel, working along the seam.

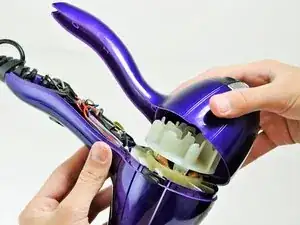

    • With moderate force, completely remove the back panel from the hair dryer.

  4. mvrrmXFPwUvaQeCQ
    mvrrmXFPwUvaQeCQ
    AP6dEb5EWr5OeZbC

    • Hold the hair dryer by the nozzle so that the handle points to the left.

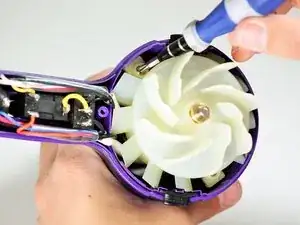

    • Remove the two 1-inch Phillips #2 screws from the back of the fan motor.

  5. eMV5dwtQB16HsGmP
    eMV5dwtQB16HsGmP
    vESHkKfd5GlT5fSY
    E2btK1XpIuSmJ1Nm

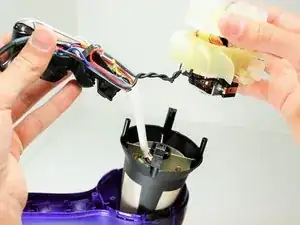

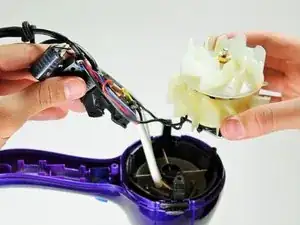

    • Caution: If you recently used the hair dryer, wait at least 10 minutes before attempting this step. The heating element may still be very hot and can cause serious burns.

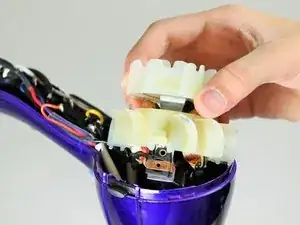

    • Pull on the back of the fan motor to gently lift the motor out of the hair dryer.

    • Lift the attached electrical wiring and heat shield completely out of the hair dryer.

  6. 4MoJhByokb41nJEy
    4MoJhByokb41nJEy
    oKjrPlbaj5ATfZol
    DEknnv6aLrClQcXM

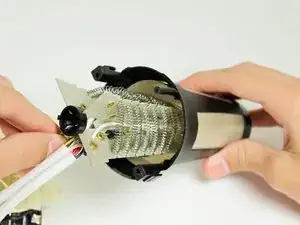

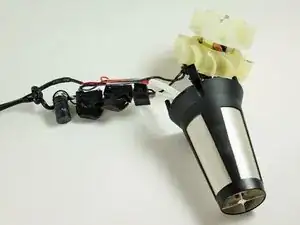

    • If you recently used the hair dryer, the heating element may still be hot! Do not attempt this guide, you may severely burn yourself.

    • Hold the heating element with the wider end facing upward.

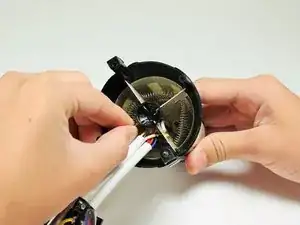

    • Gently pull the heating element out of the heat shield.

  7. f1JSRT6sBNhcJiWp

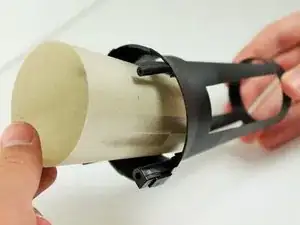

    • Gently pull the heat shield out of its sheath.

    Do I have to purchase a new heat shield?

    Mercedes Ballou -

Conclusion

To reassemble your device, follow these instructions in reverse order.
