Commodore 64 3AG fuse Replacement

Written By: Silvanus Clarke
  • Comments: 4
Commodore 64 3AG fuse Replacement

Difficulty

Very easy

Steps

5

Time Required

1 minute

Introduction

A 3AG fuse is a glass - bodied fuse designed to break an electric circuit if the current exceeds safety levels in a Commodore 64 device

  1. hTQKhSEIXuTeobMx
    hTQKhSEIXuTeobMx
    XArRRoj5GSlHOVU1
    CWZVFKBPIdlcBgER

    • 1. Remove three 6.75mm ph2 screw heads from the casing

  2. FZosRpMYQtTTP6vx
    FZosRpMYQtTTP6vx
    fBemOm4g5hUsUWtJ

    • 2. Split the case of the C64 open by pulling up on the case towards you

    • Do not pull too hard that you break the clips.

    Good advice, but is there a reliable way of keeping the clips intact?

    coryengel -

    And probably never will fill it out.

    Motlow48 -

  3. CJDBm6X2CZMH4EdE
    CJDBm6X2CZMH4EdE
    mmAkonZ2srkMUrQi

    • 1. Detach the multi-colored wire bundles that's connected to the motherboard

    • In this picture, the power indication LED (connected to the black and red wires) is not fastened to the keyboard panel, yours might be different.

  4. g1nIBMdNELuMkUQc

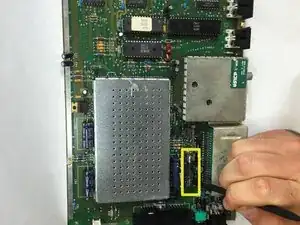

    • 2. Find the 3AG fuse located next to the joystick ports and On/Off switch

  5. ixauR1JchxPYwREY
    ixauR1JchxPYwREY
    KGSJy3WI3trRShDU

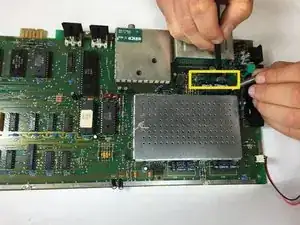

    • 3. Using the ifixit splugger, prop out the 3AG fuse from the clip.

    • * Replace the 3AG fuse by inserting the new fuse and letting it pop into the clip

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Silvanus Clarke

Member since: 26/09/14

677 Reputation

2 comments

The fuse is 1.5 Amp, not 3

JC Andy -

3AG does NOT mean a fast acting fuse. It could be either fast or slow blow. The 3 means it's 1 1/4 " long, the "A" means it has Axial connections, and the "G" means it's made of glass.

Toon Konings -
