Chromebook x360 14-da0011dx Motherboard Replacement

Written By: Jake Williamson
  • Comments: 0
Chromebook x360 14-da0011dx Motherboard Replacement

Difficulty

Difficult

Steps

14

Time Required

35 minutes - 1 hour

Introduction

This guide offers instructions for replacing the motherboard on your Chromebook x360 14-da0011dx. Removal of the motherboard requires removing both the battery and cooling fan.

Note: When re-installing a new motherboard, the heat pipes and thermal paste may need to be installed on the new motherboard.

  1. xgaiSYuyOGuhDvgG

    • Flip the device over with the hinge facing away from you.

    • On the back of the device, remove the two rubber strips on the top and the bottom of the device using a spudger.

  2. WKlCqBMAIRWm6VY5
    WKlCqBMAIRWm6VY5
    kTQpM2fTLC6leu5W

    • Remove the seven 8.0 mm screws located under the two rubber pads and the screws along the back of the device using a Phillips #1 screwdriver.

  3. oOUhJS4EKqd3QJef
    oOUhJS4EKqd3QJef
    1MLaVKi1RgDksfrM
    fUpMSpMmaEpYapAS

    • Use a spudger to gently pry the edges of the back cover off the device. Slowly work all the way around the device until the panel comes loose.

  4. WKVA2eyirIubapUU
    WKVA2eyirIubapUU
    cYU4NdnZsiPHKuTF

    • Remove the cable attached to the battery.

  5. Ss1oQcyXgUjRLNsQ
    Ss1oQcyXgUjRLNsQ
    nJAmRoQnQBmHTnXP

    • Remove the five 3.0 mm screws holding the battery in place using the Phillips #1 screwdriver.

  6. hIgx5dPja22VHKtZ

    • Lift the battery out of the chassis.

  7. 3yAeVsEfcgBhaXat

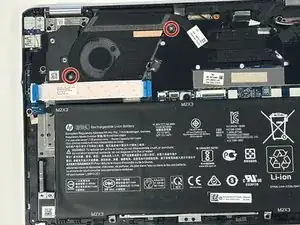

    • Remove the two 3.0 mm Phillips #1 screws holding the fan in place.

  8. PnBZ6jcORD14tZSh
    PnBZ6jcORD14tZSh
    AUGsA2JYgmeXLLrr

    • Disconnect the fan cable from the motherboard.

    • Carefully remove the fan from the computer.

    • Be careful when removing the fan, as it sits under one of the CPU heat pipes and tucks under the ribbon cable that runs to the I/O board.

  9. OE4VI2p61OKAD1nJ
    OE4VI2p61OKAD1nJ
    6wLfLUeJDlUgenVh
    XveY3YoO5Ru3SDDu

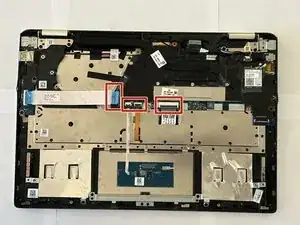

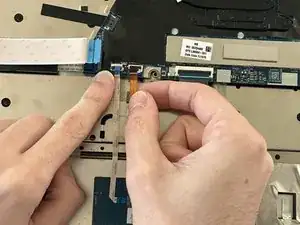

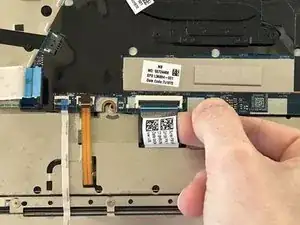

    • Lift the ZIF connector locking flaps, then remove the ribbon cables.

    • There are several small connections for the ribbon cables. Exercise extreme caution when disconnecting the cables.

    • One ribbon cable is on the underside of the motherboard and will be removed later.

  10. BqPwcaeBEyoIqhju

    • Remove the three 3.0 mm Phillips #1 screws holding the motherboard in place.

  11. BlNWQEpNyBqtJ2fq
    BlNWQEpNyBqtJ2fq
    5JrgfUvntiXnysQ6
    isoCnblZIvhIAEIP

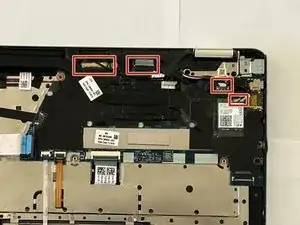

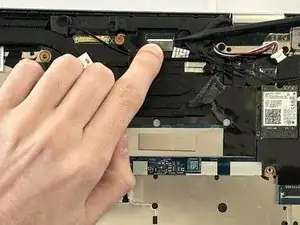

    • Disconnect the cables attached to the Wi-Fi card and motherboard along the top edge.

    • The leftmost connector is a ribbon-style connector with a metal locking bar that must be unlatched.

  12. UA2NvxfZLFSlkyxI
    UA2NvxfZLFSlkyxI
    xynYvhh4TQTfbQwO
    WTOIXhSE4ofSDmay

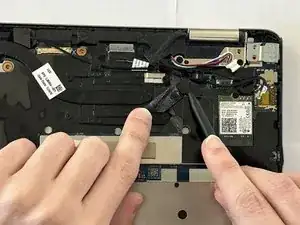

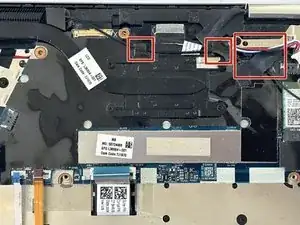

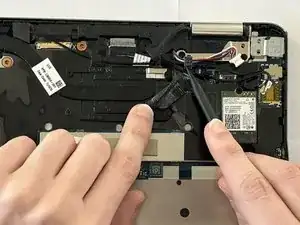

    • Use a spudger to remove the tape and plastic shielding that secure the wires.

  13. ixQJhMfnaH2GA6KP

    • Gently lift the motherboard until it is loose.

    • Disconnect the ribbon cable attached to the underside of the motherboard.

    • The locking flap on this ribbon cable must be flipped down to unlock.

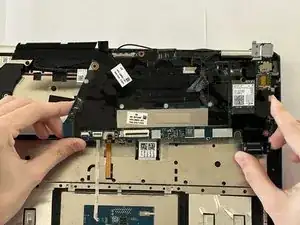

  14. EpfOIT2CdslBdRIQ

    • Lift the motherboard from the device.

    • Removal of the heat pipes may be necessary for replacement if your new replacement motherboard doesn't have one installed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
