Canon Powershot SX30 IS LCD Panel Rear Cover Replacement

Written By: Ellis DeVoe
  • Comments: 0
Canon Powershot SX30 IS LCD Panel Rear Cover Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

  1. ABbeCsVPGTEJntAh

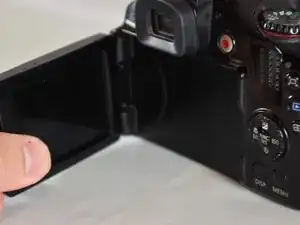

    • Turn the camera so the back of it is facing you.

    • Pull the LCD screen towards you in order to open it,

  2. sEIhZrWMCGTvGdoB
    sEIhZrWMCGTvGdoB
    CbM1XNtZpwZBvQ3Q

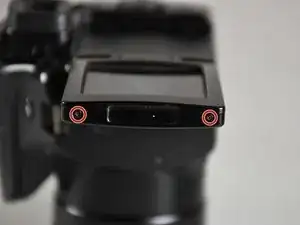

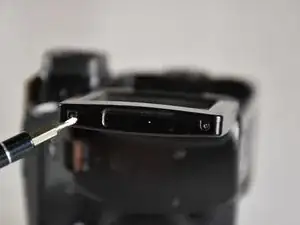

    • Unscrew the two 3 mm screws shown on the left side of the LCD screen panel using a Phillips screwdriver.

  3. ZtXASnZywg6yEKLs
    ZtXASnZywg6yEKLs
    HMJbANw12DZnVABg
    AV5Eu3qWvZIqYTkn

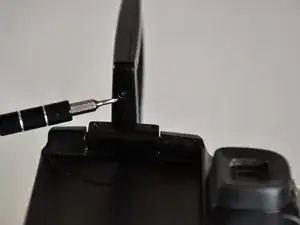

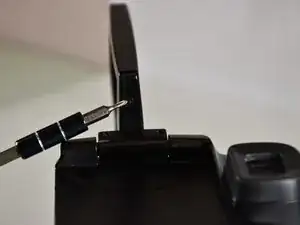

    • Unscrew the two 3 mm screws shown on the right side of the LCD screen panel.

  4. nAfIfUveJG1TcCSr
    nAfIfUveJG1TcCSr
    VITXpIPUvcRyu2TM

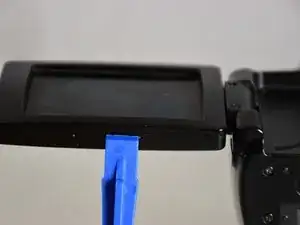

    • Using the plastic opening tool, remove the rear case of the front LCD cover.

  5. FCXnNFOqW6HiBWMW

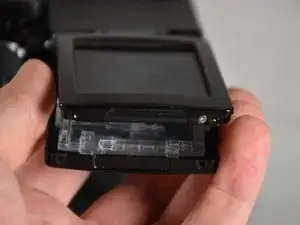

    • Pull off the back panel of the LCD screen and the plastic wire protector. Then replace the back panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
