Canon Powershot S410 Memory Card Replacement

Written By: Randy Lormand
  • Comments: 0
Canon Powershot S410 Memory Card Replacement

Difficulty

Very easy

Steps

6

Time Required

1 - 2 minutes

Introduction

A simple guide for removing and replacing the memory card.

  1. jIMwnyWSI3SXoSbo
    jIMwnyWSI3SXoSbo
    4SOZrVvgxu5N2MSw

    • Turn the camera with the bottom side facing up.

    • Locate the panel labeled "Batt. Open"

    • Place your finger on the panel and slide it in the direction of the arrow.

    • The slot will swing open revealing the battery pack.

  2. 6YAXDjDmausnZyqf

    • Pull the orange lever and the battery will spring out slightly.

  3. AyWNI1HnCVhIpWyd
    AyWNI1HnCVhIpWyd
    YlXOFnjx3h6gvNVQ

    • Grasp the battery and fully pull it out of its slot.

    • When placing the new battery back in the slot, the arrow on the battery must align with the arrow on the camera.

  4. hGYNMkbRktC2J2MC
    hGYNMkbRktC2J2MC
    fSWVhoMsHNZVBXEr

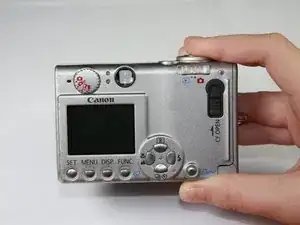

    • Position the camera as if you were going to take a picture.

    • Locate the sliding button labeled "CF OPEN."

    • Place your finger on the button and slide it in the direction of the arrow.

    • The side panel will flip open revealing the compact flash memory card.

  5. Ag5b6GoJpNMDmSHA

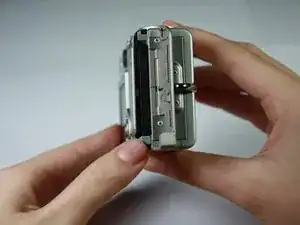

    • Turn the camera to the right side.

    • Locate the gray button at the bottom of the open slot.

    • Place your finger on the button and push it down.

    • The memory card will pop out slightly.

  6. uKRG6lNArbHeuk32

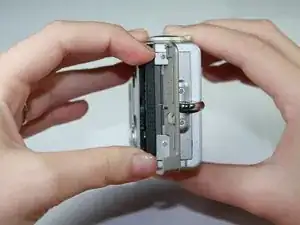

    • Grasp edges of card and pull out of slot.

    • If you insert a new memory card you may be asked to format it after turning on the camera.

    • Make sure that the arrow on the flash card is pointed towards the direction of the slot

    • Do not force the memory card into the slot. Any signs of resistance may mean the card is improperly oriented.

Conclusion

Once a new memory card has been inserted close the swinging door and you're done.
