Canon EOS 300 Battery Door Replacement

Written By: Jordan Tang
  • Comments: 3
Canon EOS 300 Battery Door Replacement

Difficulty

Moderate

Steps

15

Time Required

15 minutes

Introduction

If the camera is not turning on, the batteries may need to be replaced.

  1. M2hTDsYSGaXDENEW
    M2hTDsYSGaXDENEW
    Rpo2TrSEDYAsHZCx
    tFL6GQ1idKsOfQCs

    • Open up the battery door.

  2. YlgOvdX3wMVLdQgm
    YlgOvdX3wMVLdQgm
    2HxVsoSWenhRV2vx

    • Remove the batteries from the camera by sliding them out into your palm.

  3. VVYjefXhNYd3lkkg
    VVYjefXhNYd3lkkg
    TvRxlYKbYuJWtiKQ

    • Release the side latch to open the back panel.

  4. tWBJWPOHWGSm2WB4
    tWBJWPOHWGSm2WB4
    RZglpuMscVYbM6dC

    • Remove the two black 4.5mm screws above and below the latch.

  5. 6mGvSTkmpV1yFXQq
    6mGvSTkmpV1yFXQq
    uglucA5kNkk1ZkDk

    • Using your finger, carefully pry open the side panel from the top of camera.

    • Pull panel downwards to remove.

    • Make sure to keep track of the small black piece of rubber under the latch.

  6. tmooRck6pDLV2dtH
    tmooRck6pDLV2dtH
    mSRVZHG6MrKOdE4c

    • Remove the two silver 6mm Phillips #1 screws.

  7. CSRcRbBrunU21Rej
    CSRcRbBrunU21Rej
    JOhMvwDRd2TbW1wo

    • Flip camera over to the bottom.

    • Remove the one 5mm Phillips #1 silver screw.

  8. 5NEMy5bcaXDqLjGb
    5NEMy5bcaXDqLjGb
    EoqKvnJFuVkA1dD2

    • Remove the front panel by pulling away from the side with the lever.

    There is another loose part here that can come off on the side of the latch. It's also off in the picture. When reassembling, make sure to reconnect it to the spring as well, otherwise the back panel opening mechanism will not work correctly.

    Ruben -

  9. EGOgw2F5HgnSsRib
    EGOgw2F5HgnSsRib
    INbUYARFEJhGesHc

    • Remove three black 7.3mm Phillips #1 screws located on the corners of the camera.

    • Remove five black 4.8mm Phillips #1 screws.

    When reassembling, make sure that the hole on the bottom panel for the rightmost 4.8mm Phillips #1 screw (orange) goes underneath the hole still attached to the camera.

    Ruben -

  10. lcEgonhlOkSFLP2k
    lcEgonhlOkSFLP2k
    I4BnK5BqYDJ2Vsgd
    ppxN1EPWwDh6cmWS

    • Simply remove the bottom panel by prying it off with your finger.

    • When removing the panel, be sure the bottom of the camera is facing upright. There are loose gears that may fall out.

    • Be wary of a loose piece of foam attached to the bottom panel.

  11. PRxHVr5u1vwFihjZ
    PRxHVr5u1vwFihjZ
    vRZevGJsnGjAPNZL
    alvtJ3DUYHJd3DUe

    • Remove the remote control socket cover.

  12. UDlIMymNVZKgbu2p
    UDlIMymNVZKgbu2p
    2lZnDAGaRYT4u3mh

    • Remove two black 4.5mm Phillips #1 screws.

  13. BEMVFN1xTvuOYxPC
    BEMVFN1xTvuOYxPC
    LPhSTPJlG6wJIsnN

    • Remove two black 4.8mm Phillips #1 screws on the front of the camera.

  14. DTSrfMyDjDTAwtVi
    DTSrfMyDjDTAwtVi
    XrU5Totgsh1QkA1l

    • Pry open the side grip using a spudger.

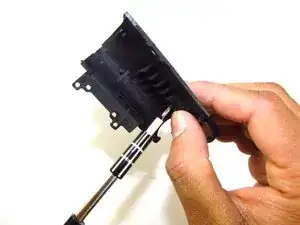

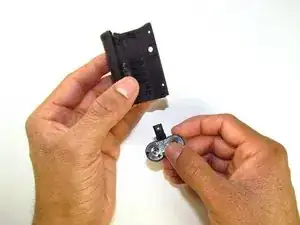

  15. eMKeShBnCda3Zwly
    eMKeShBnCda3Zwly
    RBYxQnUtQrTI5KXX
    KCrhvhfAiNChYxrP

    • Remove one black 5mm Phillips #1 screw.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Jordan Tang

Member since: 24/01/14

605 Reputation

One comment

When reassembling, make sure to attach the spring shown in step 8 to the film back release mechanism. I missed this the first time I reassembled the camera and the release/close slide would not automatically close like it did before. I found keeping a finger over the bottom post and using the SIM removal bit to stretch the spring to the top of the slide was very useful. Overall great guide! Thanks for posting!

Cody Mull -
