Introduction
Many Patagonia backpacks feature a removeable sternum strap, also known as a chest strap, designed to alleviate shoulder pressure and distribute weight more evenly across the chest.
This guide demonstrates how to reattach one specific style of Patagonia sternum strap - the c-clamp - named for its C-shaped cross-section. This style was used on some packs produced between 2009 and 2018.
Replacement parts are currently unavailable. To get a new sternum strap, take your pack in to a local Patagonia retail store for repair evaluation or send it in to Patagonia through their mail-in repair service.
-
-

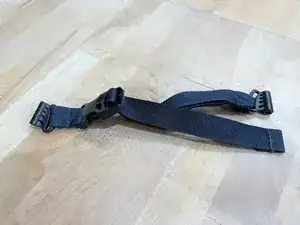

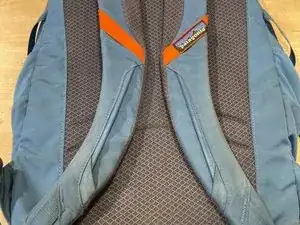

Locate the sternum strap that has come off the pack.
-
Replacements for this style of sternum strap are not currently available, so if part or all of the sternum strap is missing, reach out to Patagonia for alternative options.
-
-
-

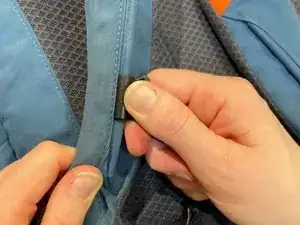

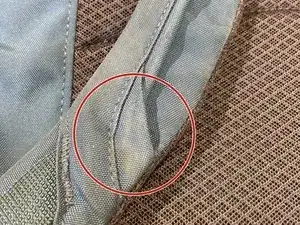

The 'c-clamp' piece of the sternum strap fits over a plastic tube or ‘rail’ that is inside the backpack strap. At the bottom of this rail there is a fabric flap.
-

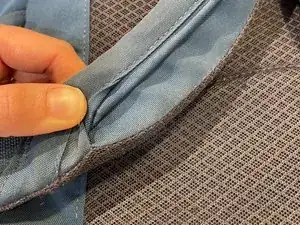

Pull back the fabric flap to expose where the rail ends. This is where the c-clamp was designed to be slid on and off.
-
-
-

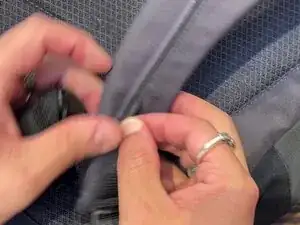

At the exposed area at the base of the rail, slide the c-clamp back onto the rail.
-
Pull tightly on the fabric flap to expose the area.
-

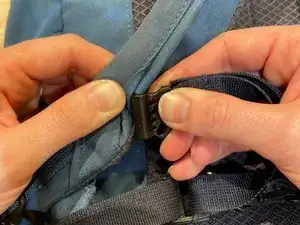

Maneuver as if parallel parking a car. Start at an angle, slide partially onto the rail, and then straighten out.
-
Repeat the steps above on the other backpack strap.
-
-
-

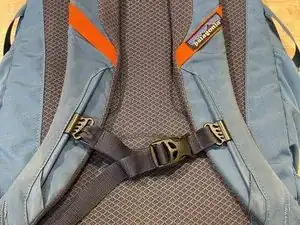

Slide the sternum strap to your desired position.
-
Hit the trails with your newly attached sternum strap!
-
