Brother MFC 7240 Toner Cartridge Replacement

Written By: Gurnoor Loee

Comments: 0

Brother MFC 7240 Toner Cartridge Replacement

Difficulty

Easy

Steps

Time Required

5 minutes

Introduction

This is an easy to follow guide on replacing the ink cartridge in a Brother MFC-7240 Printer. Before starting make sure you have the correct toner cartridge that is compatible with the Brother MFC-7240 Printer. Check the toner package; it should say MFC-7240 as one of the compatible printers.

Parts

MFC 7240 Cartridge/Toner

Step 1

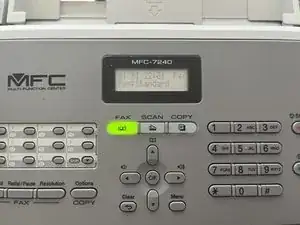

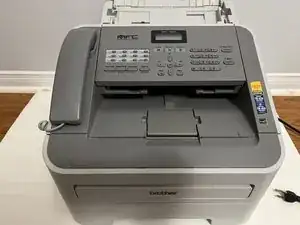

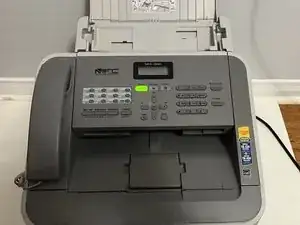

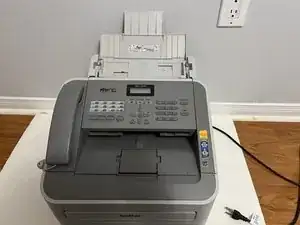

Ensure the printer is on a stable surface with enough room to access the ink cartridge compartment.

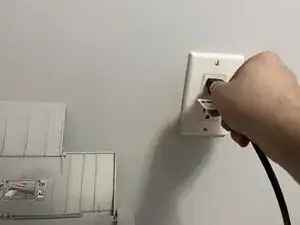

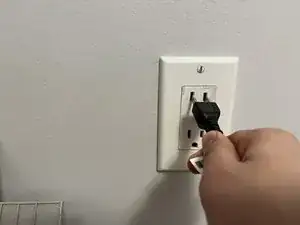

Turn off the printer by unplugging it from the outlet.

Step 2

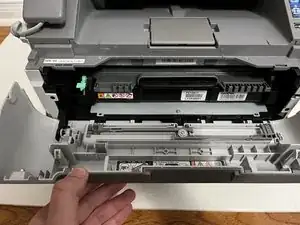

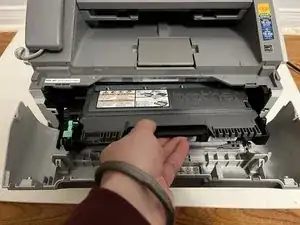

Lift the printer cover which is located at the front of the printer to reveal the toner cartridge compartment.

Step 3

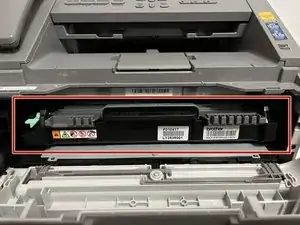

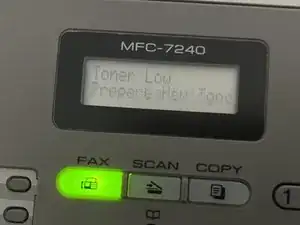

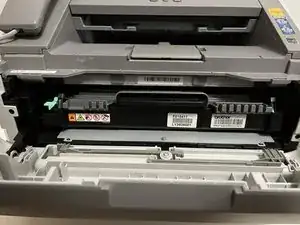

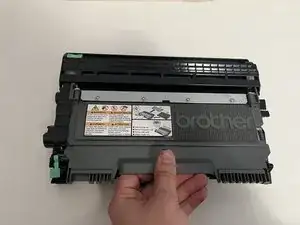

Locate the empty ink cartridge that needs replacement.

Step 4

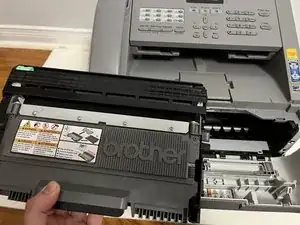

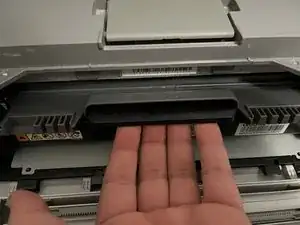

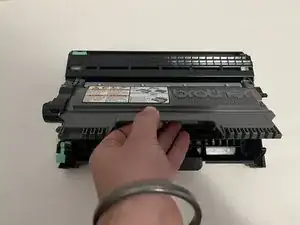

Put your fingers under the slot underneath the toner cartridge and gently pull it out.

Step 5

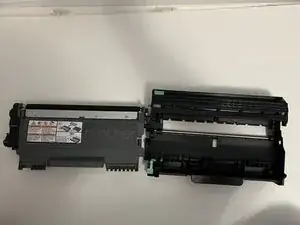

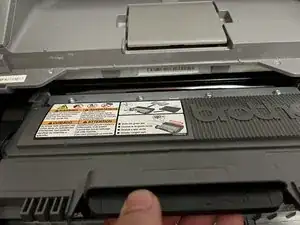

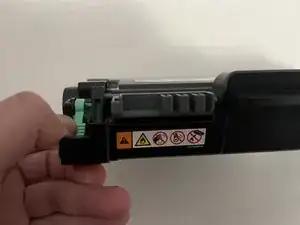

Press down on the small green lever on the bottom left of the drum unit to release the cartridge.

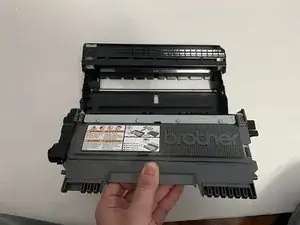

You will need to push down the green lever and pull out the toner cartridge at the same time.

Step 6

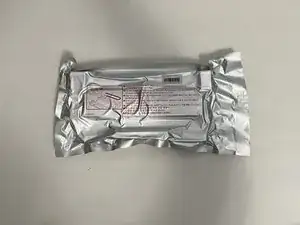

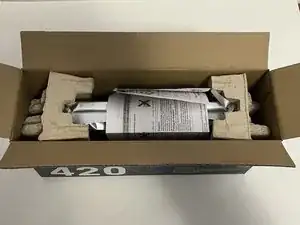

Unpack the new toner cartridge.

Step 7

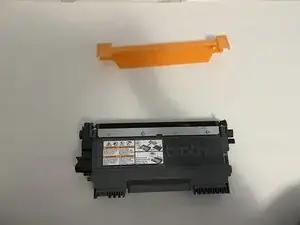

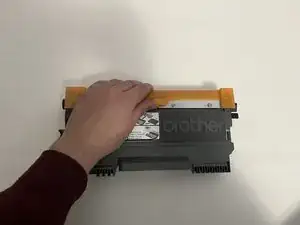

Remove the orange protective casing on the new toner cartridge.
Be careful with this step because the protective casing holds the ink so when removing it don't touch the ink roller underneath it or else you will get ink on your fingers.
