Breville BKC600XL Heating Tank Replacement

Written By: Antonio
  • Comments: 0
Breville BKC600XL Heating Tank Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

Replacing the heating tank should it fail to work.

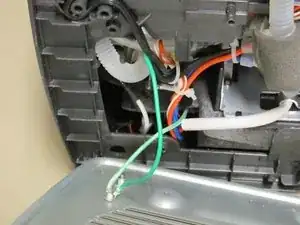

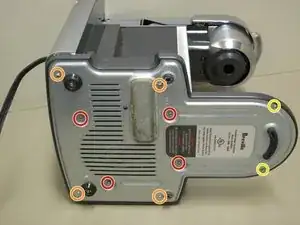

  1. j3hn3JoNAdyyp3B5
    j3hn3JoNAdyyp3B5
    WiPcxUaiGIxHtSQ1
    pbvbojSKRsYOFBNN

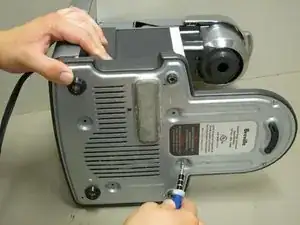

    • Use a Phillips #0 screwdriver to remove the following ten screws:

    • Four 18mm Phillips screws.

    • Four 9.75mm Phillips screws.

    • Two 8mm Phillips screws.

    • The cover will not remove entirely. Keep green ground wire attached to the cover.

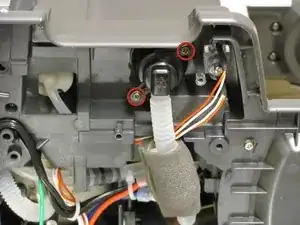

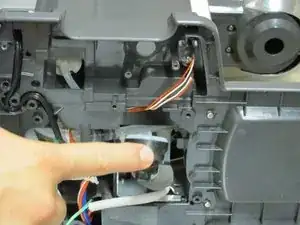

  2. jGd1YD5mKWKJw1uP
    jGd1YD5mKWKJw1uP
    iJF5HsIgmYifl5TA

    • Remove the two 14.5 Phillips screws.

    • Ensure that only the water inlet valve can be moved.

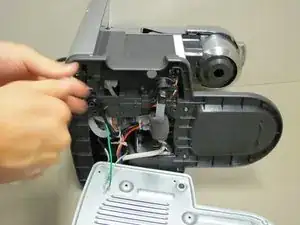

  3. 2LaQKUV6pmScZAmV
    2LaQKUV6pmScZAmV
    p5mAbee5SXTQqaRo

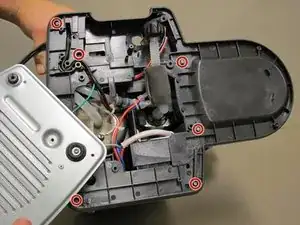

    • Use a Phillips #0 screwdriver to remove the following six screws:

    • Six 14.5mm Phillips screws.

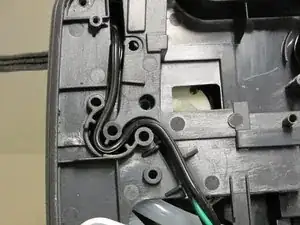

  4. aHhWgDlgVJSQ2KVo
    aHhWgDlgVJSQ2KVo
    jmjjOleFJloSh15a

    • Remove the power cord from the groove. (the black cord that leads into the green wire.)

    • This creates more slack in the wire to give you more room to work with.

    • DO NOT remove green wire from the cover its attached to.

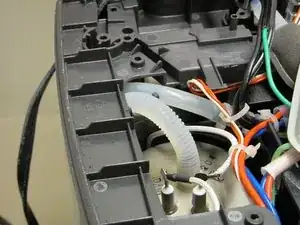

  5. ApNSMMj51SSMiKhy
    ApNSMMj51SSMiKhy
    QT2m2JEfwVPsSKoI

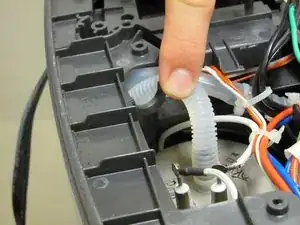

    • Identify the hose that connects to the heating tank. (Observe that it is held up on a small hook.)

    • Push down on the hook and carefully move the hose from its grip.

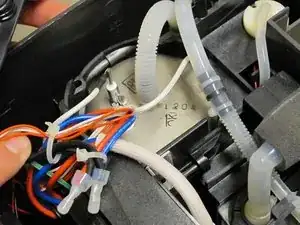

  6. QRdNKN4EiQ5Xqwbi

    • Carefully pull out the heating tank by hand.

    • The heating tank may still be hot. Exercise caution when grabbing hold of the tank. If necessary, wait four to six hours after last use.

    • Reminder for reassembly; You will need a new band to tie the hose back to the heating tank.

Conclusion

To reassemble your device, follow these instructions in reverse order.
