Braun Aromaster KF440 one-way valve Replacement

Written By: Dennis
  • Comments: 0
Braun Aromaster KF440 one-way valve Replacement

Difficulty

Moderate

Steps

7

Time Required

7 - 10 minutes

Introduction

Removing the internal one-way valve may become necessary if it becomes clogged and water is not flowing properly through the coffee maker.

  1. bLpfvVISJuGWjtCI

    • Remove the carafe (coffee pot) from the coffee maker.

    • Turn the Braun Aromaster KF 440 upside down so the base is exposed.

  2. 3LrfRpHZbvYhlRgY

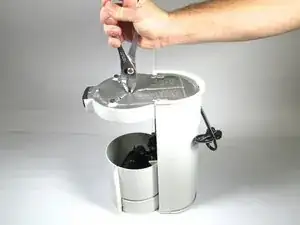

    • Locate the nut at the center of the base and unscrew it with a pair of basic pliers.

  3. CChy6lvHR5CSBE6j

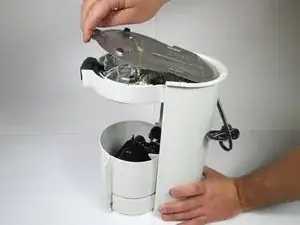

    • Gently lift the cover away from the bottom of the coffee maker and remove it.

  4. aoijZvRapniKNQuy

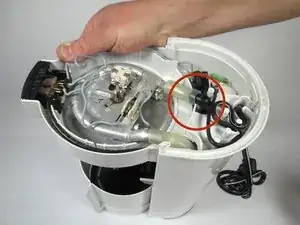

    • Locate the one-way valve.

  5. xJD65v54EI3cwaVt

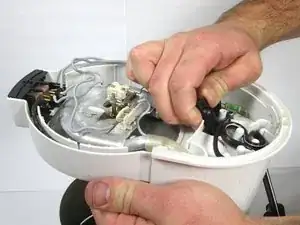

    • Lift up on the one way valve to snap it out of place. (This shouldn't require much force).

  6. lFCQQhB6aKpfnwJG

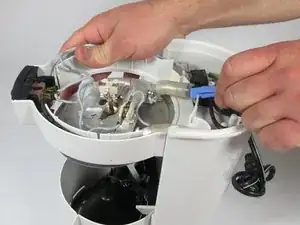

    • Using the larger plastic opening tool, gently push the tubing off of the one-way valve. (If the tubing is being stubborn and won't come off, run the metal spudger around the inside of tubing to free it up.)

  7. elrRCcDc6VIMNKMx

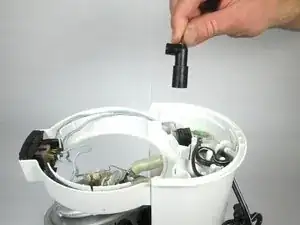

    • Completely remove one-way valve from the inside of the coffee maker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
