Bottom Cover

Written By: Regome
  • Comments: 0
Bottom Cover

Difficulty

Easy

Steps

6

Time Required

3 - 5 minutes

Introduction

  1. ePGUGVEkyoyPZ6NP

    • Before proceeding, power down your Laptop and remove the power cable.

    • Close the display and lay it on a flat surface, top-side down.

  2. fMSuCnJImCxpVRsl

    • Unlock the battery by sliding the battery lock to the unlock part.

  3. Hehci1DyQecOxWJH

    • Slide the middle lock to the right and the battery will pop up.

  4. WKxtfNGbag3PbMe3

    • If you want to replace the battery and nothing else then now is the time to do so.

    • Once the battery hatch is unlocked you can now safely remove the battery.

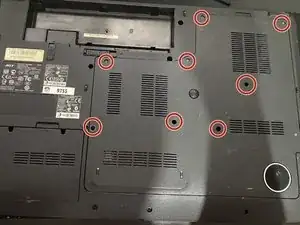

  5. lOWEL26WeDjUoYbX

    • Use a Philips J1 driver to remove eight screws securing the bottom case.

    • Remove all of the 8 screws and the bottom panel should pop off.

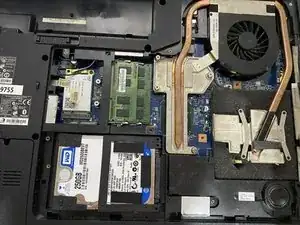

  6. k3SxubnfQSoW4Hxs

    • After that you are in and now can change most of the components, which we also have tutorials for.

Conclusion

To reassemble your device, follow these instructions in reverse order.
