Blackberry Curve 9300 Keyboard Replacement

Written By: Rory Stothers
  • Comments: 0
Blackberry Curve 9300 Keyboard Replacement

Difficulty

Moderate

Steps

9

Time Required

10 minutes

Introduction

This guide is designed to help consumers replace their Blackberry Curve 9300 keyboard.

  1. pvyRjG4uVdqiDMvV

    • Place your Blackberry face down in front of you.

  2. EjAMOLUD5Y2W5Apy

    • Locate the indent on the bottom of the back cover.

    • Use your fingernail to lift and remove the back cover.

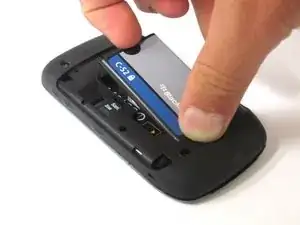

  3. UASDCKdux12F3KpA

    • From the top, use your fingernail to lift and remove the battery.

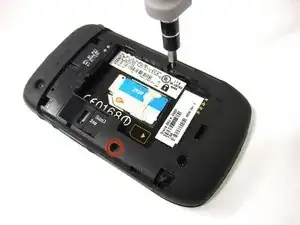

  4. nrNsSqIE2UfGNVSg

    • Use the T6 Torx screwdriver to unscrew the two 5mm screws highlighted.

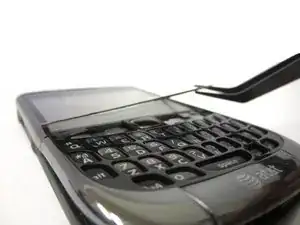

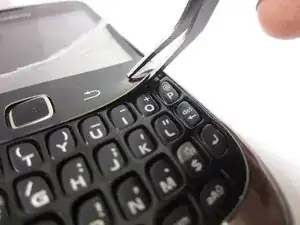

  5. EfBMJPYVNFIQgxw1
    EfBMJPYVNFIQgxw1
    aoZYXyDFrNacSvCZ

    • Place the phone face up and use tweezers to securely grip and lift the screen upwards.

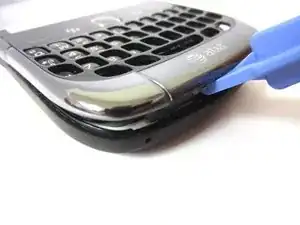

  6. nVfAfidkL5sPYOp1

    • Use a plastic opening tool to lift the bottom edge of the front cover.

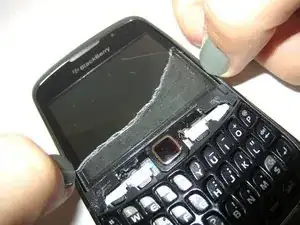

  7. YZCXnSSPIqrw3sBM

    • Use your nails to unclip the sides of the frame from the phone.

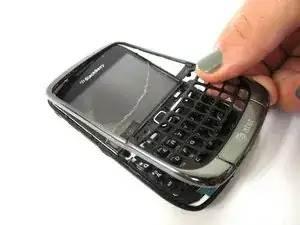

  8. 4THfZna6xEdY5SAg

    • Lift and remove the frame.

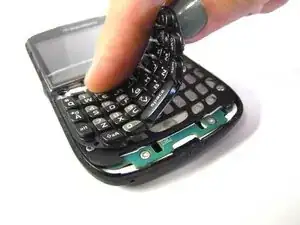

  9. irVGIhRFcfKSCjCM

    • Lift and remove the keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
