Blackberry Bold 9900 Trackpad Replacement

Place phone screen down.

Use your finger to life upward on the battery case.

Pull the cover away from the battery.

Lift the edge of battery with the green stripe upward to remove battery.

The MicroSD card is located where the red rectangle is shown.

To remove MicroSD card, push the card inward towards the top of the phone then release. The MicroSD card will be ejected.

Lift the bezel at the bottom of the phone up and peel it away from the phone.

Remove the two exposed screws using the T5 Torx screwdriver.

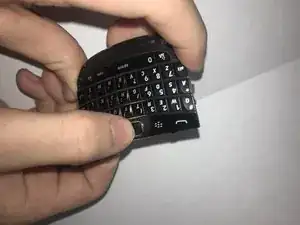

Now lever the keyboard up using the screwdriver in the indicated hole.

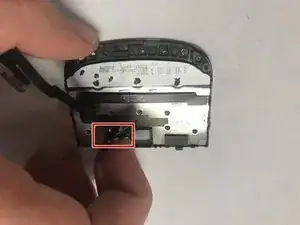

The keyboard is attached via a ribbon cable. Pull the cable up to remove the keyboard.

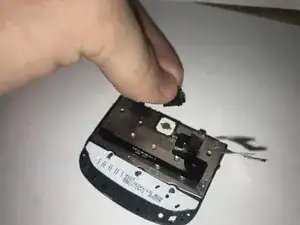

Push into the trackpad. This will release the trackpad supporting piece.

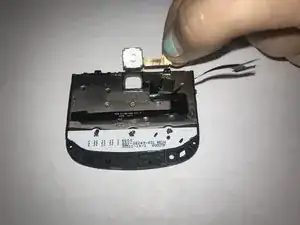

The trackpad is attached via ribbon cable. Pull this cable up in order to release the trackpad.
