Blackberry Bold 9650 Buzzer-Loundspeaker Replacement

Written By: Ryan
  • Comments: 2
Blackberry Bold 9650 Buzzer-Loundspeaker Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 30 minutes

Introduction

  1. eNLu4FDCTjH2fArt
    eNLu4FDCTjH2fArt
    PXODXZSxTlMl6MgI

    • Turn the device upside down.

    • Using your finger, slide the silver cover release button towards the top of the device.

    • Lift and remove the back cover.

  2. BOKXSEakaW3J3Hsj

    • Using your fingernails, lift the sides of the battery.

    • Remove the battery.

  3. TEGrbhClPSs1bMCE

    • Orient the device so that the screen is facing the ground.

    • Using your finger, gently lift the top of the SIM card.

  4. KrKWOtJdIjmyiEeG

    • Gently pull out the SIM card.

    • The card will break in half if you apply too much force when pulling out the card.

    make sure to takeout memory card also.

    Trying to open the back part with card still installed is a BIG NO NO.

    ralph -

    I ordered a new speaker and as soon as it came it I jumped on here to look at the directions. followed the directions exactly and now it works again. Only suggestion is to be careful removing ear piece cover, there are 4 small fragile plastic prongs at the top that can easily break. I broke 2 but phone still works! Thanks for the help!

    Jeremiah Croych -

  5. yUM5IBAnhQFcHfap

    • Using a T6 Torx screwdriver, remove the four screws from the bottom half of the device.

  6. MmWGDV3j5JxIKTMc

    • Orient the device so that the screen is facing you.

    • Using a spudger, remove the ear piece cover.

  7. bCVuTiUQlBcLZOJ4

    • Using a T6 Torx screwdriver, remove the two screws from the top corners of the device.

  8. TWFApOw4VqXi3WaG

    • Remove the back chassis by gently pulling the chassis back and forth.

    • The headphone jack can break if the chassis is pulled too forcefully.

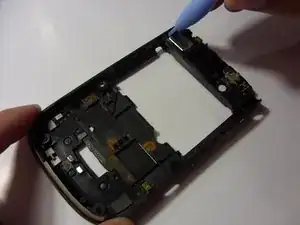

  9. lPjvonX4y62XGVWN

    • Use a plastic pry tool to remove the speaker.

    • Be careful removing removing the speaker as the plastic frame around the speaker is fragile.

Conclusion

To reassemble your device, follow these instructions in reverse order.
