Introduction

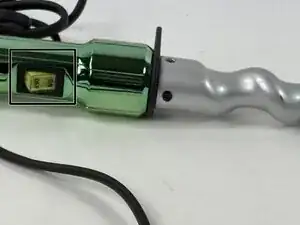

While many repairs can be accomplished without soldering, there are times when it's necessary to replace certain components, e.g., on switches and heater coils. An On Switch may need to be replaced if when flipping the switch back and forth, it does not turn the curler on. It may seem very technical and complicated, however, it is simpler than it seems.
-
-
Using a opening tool, insert it along the seam of where both halves of the casing meet, and slowly pry the left side of the casing from the right.
-
Gently pull back the right side of the casing from the center molding.
-
-
-

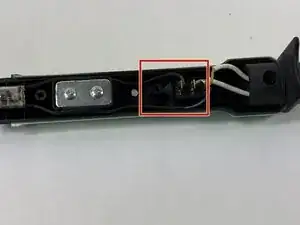

Release the securing tabs on the on switch to the center molding.
-

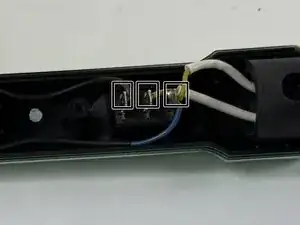

Use Flat head Screwdriver 4mm to break off the solder where the wires meet the switch.
-
-
-
Press new switch back into the center molding and use a soldering iron to solder wires on new switch.
-
To reassemble your device, follow these instructions in reverse order.
