Introduction

There may be multiple reasons that the handle casing would need to be removed, whether it be to service the product, or simply replace the casing with a different colored one, following these steps will make it easy to understand what is required to perform this task.

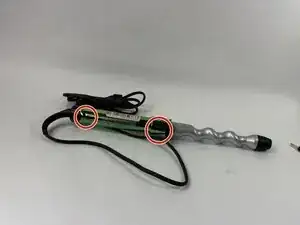

  1. QaEkqfUePfXUPpF2
    • Remove all four of the 4 mm Phillips screws on either side of the casing.

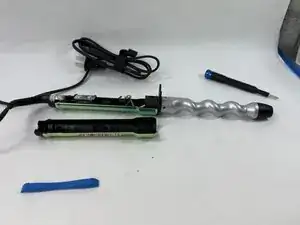

  2. D5AoAOLlZtcjioC2
    • Using a opening tool, insert it along the seam of where both halves of the casing meet, and slowly pry the left side of the casing from the right.

    • Gently pull back the right side of the casing from the center molding.

Conclusion

To reassemble your device, follow these instructions in reverse order.
