Beats Pill XL Motherboard Replacement

Written By: Michael

Comments: 13

Difficulty

Moderate

Steps

Time Required

5 - 10 minutes

Introduction

In this guide, you will remove the cables and screws from the motherboard. You will also take the Bluetooth antenna out of the speaker.

Tools

Step 1

Using a plastic opening tool, pry the casing from the rest of the device.
Pry all the way around the edge and then pull apart.
It should be relatively easy, to pull apart. Don't be afraid to apply a necessary force.

Step 2

Using your thumb, remove the 8 rubber plugs in order to get to the screws.
Simply rub them towards the speakers and they will slide out enough to grip the edge and pull them out.
In the picture provided, we labeled four of them on one side of the Beats Pill XL. The other four are symmetrical to these four on the other side of the device.

Step 3

Using a Phillips #2 screwdriver, remove the 8 (10mm maxi-loc Phillips #2) screws that hold the casing together.

Step 4

Pull apart the front casing from the back casing, slowly. Try to avoid any tension on any of the connected cables.
Separate at a slow constant force to avoid damage to the ribbon cables.

Step 5

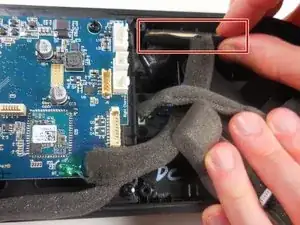

Gently pull on the plastic tab at the base of the ribbon cable to remove it from the motherboard.
Never pull the cables by the cord, as this could cause damage to the cables and/or motherboard. Always disconnect the cables from the base by the motherboard.

Hola amigos y amigas como estan me pueden ayudar como puedo conseguier la placa del beatspill esta q esta aki xf urgente soy de Ecuador ciudad manta

Stalin Salavarrialoor -

Step 6

Using your thumb and index finger, pull upwards on the base of the the power cable to remove it from the motherboard.
Even though there are two batteries, there is only one cable connecting the two to the motherboard.

Hola nesecito esa placa xf alguien q me diga como la consigo

Stalin Salavarrialoor -

Ye bluetooth order krna hai

Mivi-s32-v1.0 -

Step 7

After completing the guide for removing the case, remove the cables connecting the speakers.
Simply pull up on them without pulling on the wires themselves.

Quiero toda esa placa madre xf quiero conectarme con un vendedor si es aki en Ecuador mucho mejor cuanto cuesta mi numero mobil es 0967197831 xf conctacteme

Stalin Salavarrialoor -

Step 8

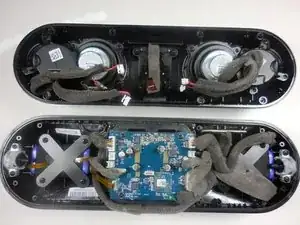

Set the half of the device containing speakers to the side.

Step 9

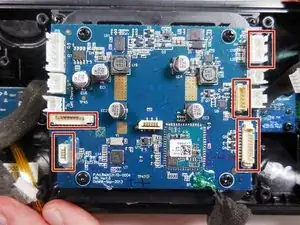

Remove all five remaining connectors on the motherboard.
Do not remove the Bluetooth antenna in the bottom right corner of the motherboard.

Step 10

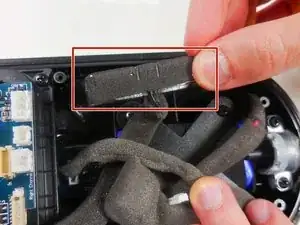

Remove the chip for the Bluetooth antenna located to the top right of the motherboard.
The other end of this chip is connected to the motherboard via the Bluetooth antenna. Be careful not to tug on that end for any reason.

Step 11

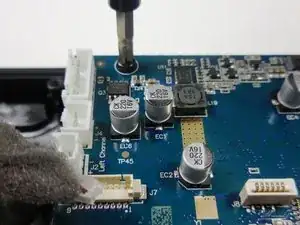

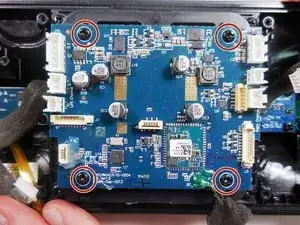

Using a Phillips #2 screwdriver, unscrew the 4 (8mm pan head Phillips #2) screws holding the motherboard onto the case. They are located in the four corners of the board.

Step 12

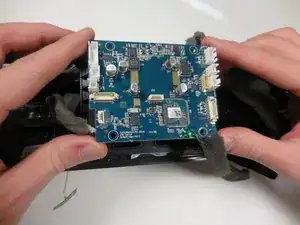

Using both hands, gently lift the motherboard from the case.
You have successfully removed the motherboard.
Be sure to put the board somewhere it will be safe when it is not being worked on.
