Battery Disconnect

Written By: Spencer Day
  • Comments: 0
Battery Disconnect

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

How to disconnect the battery in your Lenovo Legion Y7000P laptop.

  1. thgv5DHwFHZUJFCa
    thgv5DHwFHZUJFCa
    TcfLkQTFS6VHtm2f

    • Allow your laptop's battery to drain below 25% before starting this repair—a charged battery may catch fire if damaged.

    • Unplug all cables and fully shut down your laptop.

  2. VTeYsBRSCCsQVnMi

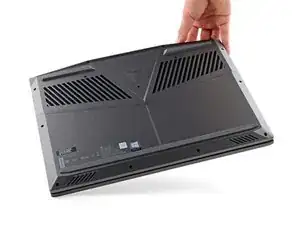

    • Flip your laptop over so the rubber feet are facing up.

  3. hV1MKDqcMQJ1NQpx
    hV1MKDqcMQJ1NQpx
    rH6HKPHQRKRro2CA

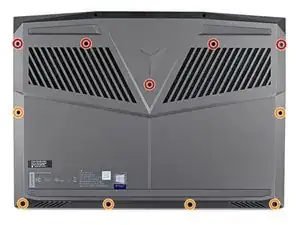

    • Use a Phillips screwdriver to remove the 11 screws securing the back cover:

    • Five 11.5 mm‑long screws

    • Six 4.7 mm-long screws

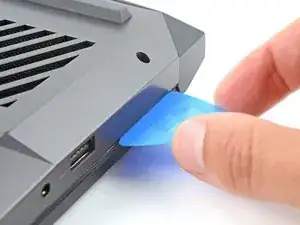

  4. uJvTfTQdUE6kEsqD
    uJvTfTQdUE6kEsqD
    fknmlKNh4T4xYTIf

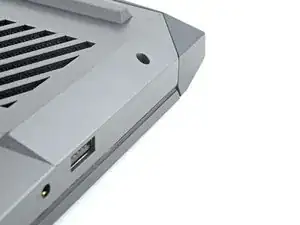

    • Insert the flat side of an opening pick between the top right corner of the back cover and frame.

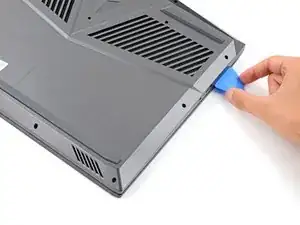

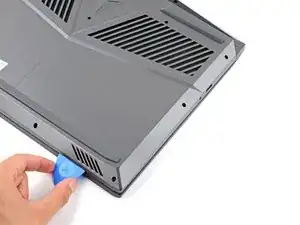

  5. LrgZoFWnqlf1Pyha
    LrgZoFWnqlf1Pyha
    rWMakKDPr4owVR4x
    DrkjyUy5WbDaGsFJ

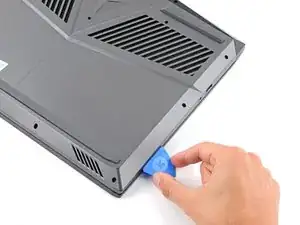

    • Plastic clips secure the back cover to the frame. You'll hear and feel them release as you work.

    • Keep the pick angled upwards while sliding to help release the clips.

    • Slide the opening pick down the right edge and around the bottom right corner to release the clips.

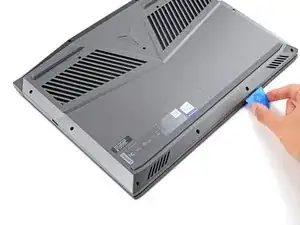

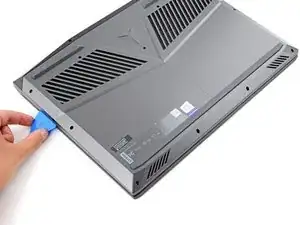

  6. IgZAKpirZCUKnCgR
    IgZAKpirZCUKnCgR
    SLLmXNsreEdZQuor
    maBaUaldICwkGLyJ

    • Slide the opening pick along the front edge and up to the top left corner to release the remaining clips securing the back cover.

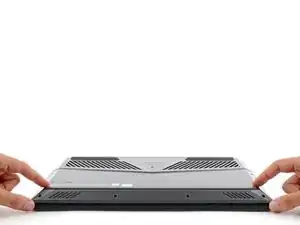

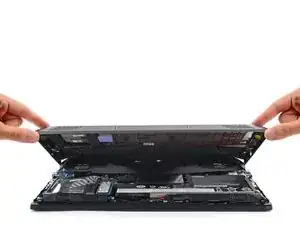

  7. OBkqrEfHPm6wwebZ
    OBkqrEfHPm6wwebZ
    KfsKcUi3gC2dFdV1
    SkfxxcoVAYTmwfFv

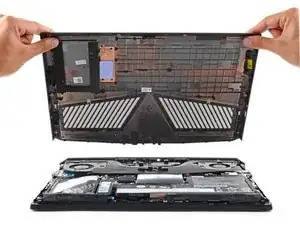

    • Remove the back cover.

  8. EiEgdBKqWn2S2I1B
    EiEgdBKqWn2S2I1B
    gJrNrCnIglmRhiv4
    ZYKOTLWPQuCohmpf

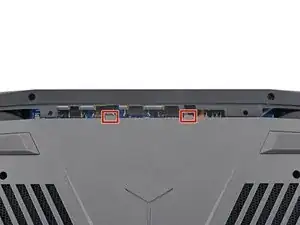

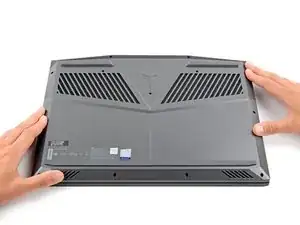

    • During reassembly:

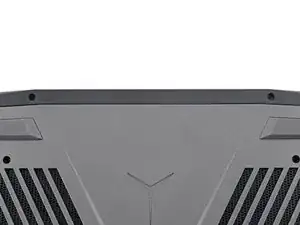

    • Slide the two tabs near the center of the back cover's top edge under the hinge cover.

    • Press down firmly around the perimeter of the back cover to engage all the clips.

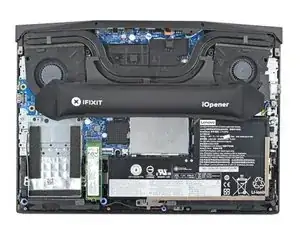

  9. okYRp5tiK1CRZEVV
    okYRp5tiK1CRZEVV
    Pyj6ipmpMhKQOwhL

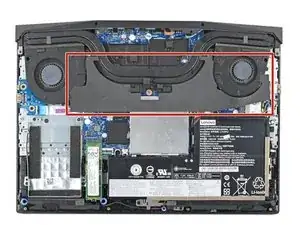

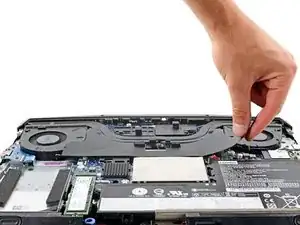

    • A stiff, black cover runs across the heatsink and fans.

    • Removing the cover makes repairs much easier, but isn't required. If you don't want to remove the cover, you can roll it onto itself to keep it out of the way and skip the next two steps.

    • Heat an iOpener and apply it to the cover for two minutes.

    • You can also use a hair dryer. Follow this guide for more instructions.

  10. 6NWZp6XnDywCncTb
    6NWZp6XnDywCncTb
    uchQhZyhagIRsotc
    dFXPu5NdbIYhDiLs

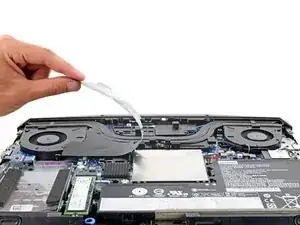

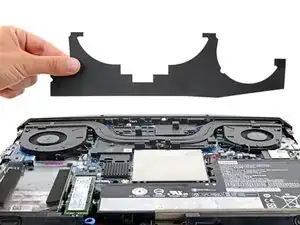

    • Gently peel up and remove the black cover.

    • During reassembly, press the cover back into place using the residual adhesive.

  11. XQqHxAUjtp5CKOoT
    XQqHxAUjtp5CKOoT
    tGvGGuASjSXGELNE
    CafLfkGJfUFSlZmj

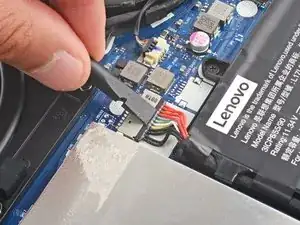

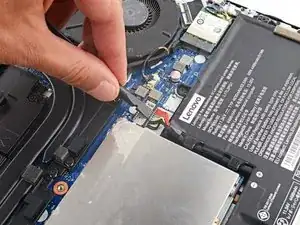

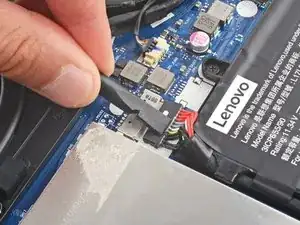

    • Use the flat end of a spudger to push the battery connector straight out of its socket.

    • Push the tab on top of the battery connector, not the wires themselves.

Conclusion

To reassemble your device, follow these instructions in reverse order.
