Battery Disconnect

Written By: Spencer Day
  • Comments: 0
Battery Disconnect

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

This is a prerequisite-only guide! This guide is part of another procedure and isn't meant to be used alone.

  1. QTEpynD4dJlQ5dCD
    QTEpynD4dJlQ5dCD
    uIPUxh1CufR3a1Er

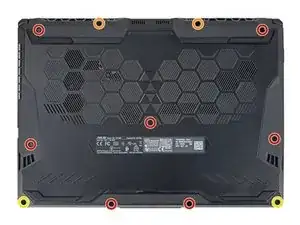

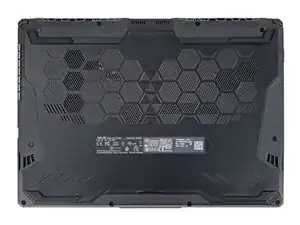

    • Remove the 11 Phillips screws securing the lower case:

    • Seven 11.6 mm screws

    • Two 14.6 mm screws

    • Two 6.1 mm screws

  2. PTVLu5Ys2uOg2lUN
    PTVLu5Ys2uOg2lUN
    ZQQvBZTRurlWXdCs

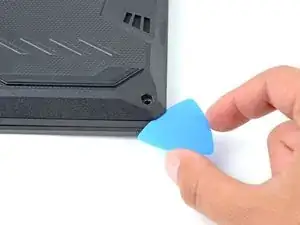

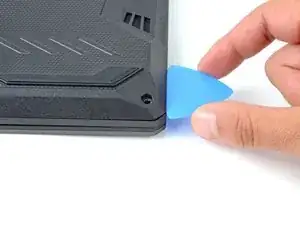

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. wIeNMQexu2ntGkSe
    wIeNMQexu2ntGkSe
    2UWpbkQ3jIQaqlFd

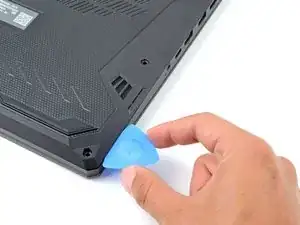

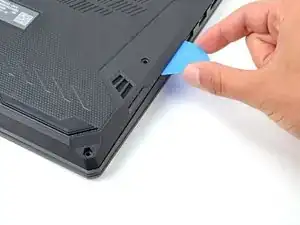

    • Slide the pick along the right edge to release the clips securing the lower case.

  4. 3dqrEcyGUBW2LojQ
    3dqrEcyGUBW2LojQ
    Qf5BtrPoyaXH1cMw
    yiQpggYH2iZtA5aV

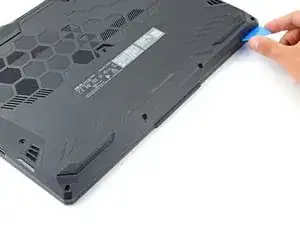

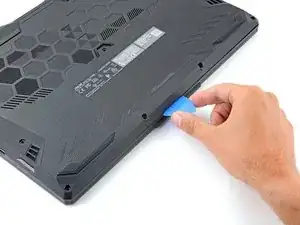

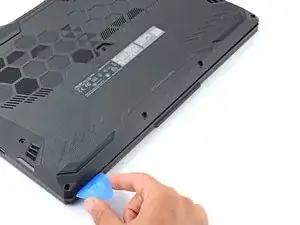

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

  5. EeZUQ5YtGLXIkxqG
    EeZUQ5YtGLXIkxqG
    bUuVBZwJjgysL6Tv
    UCAJsZNYKh3rCdPl

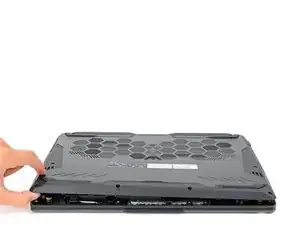

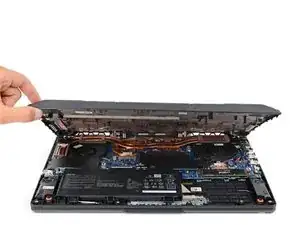

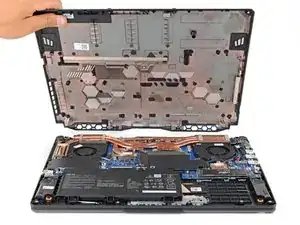

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  6. RJXHWxEGSLVV5muy
    RJXHWxEGSLVV5muy
    EMykCVnT2t2bhyOY

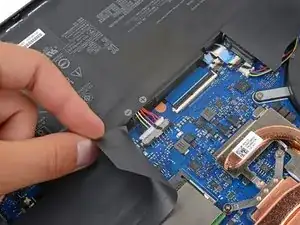

    • Use your fingers to move the plastic that covers the battery connector out of the way.

    • If the plastic is not staying out of the way use a piece of tape to secure it.

  7. YNA23OMcHFr1poyU
    YNA23OMcHFr1poyU
    csfPGa3HNTlaLQwW
    c5UVm5ICg1NlCy65

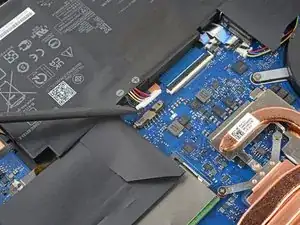

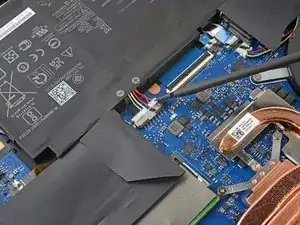

    • Use the flat end of a spudger to push each side of the battery connector until it comes out of the socket.

Conclusion

To reassemble your device, follow these instructions in reverse order.
