Bambu A1 Mini Hotend Assembly Replacement

Written By: not-ethan
  • Comments: 0
Bambu A1 Mini Hotend Assembly Replacement

Difficulty

Easy

Steps

6

Time Required

5 - 10 minutes

Introduction

The Hotend Assembly (Hotend) includes the nozzle and is the final part the filament goes through before reaching the build plate.

  1. knCj1LTEiwhLhDxD
    knCj1LTEiwhLhDxD
    jfQiIgX1DZROsASf

    • Cut the filament by fully pressing the handle on the right side of the toolhead

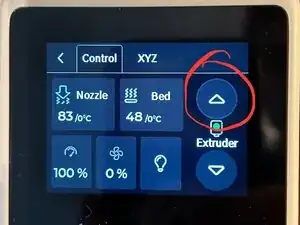

    • In the control window press the up button for the extruder

    • You dont want to need to rip the filment out of the nozzle

  2. 5WoQ1mlOT5mCNiN3
    5WoQ1mlOT5mCNiN3
    mAHD2Qb1WuroBLJF

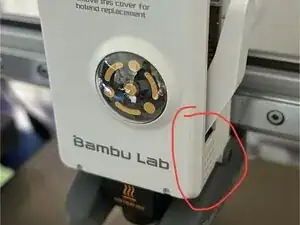

    • Squeeze in the circled spot and pull out.

  3. uvEgaIimFcLqMvlJ
    uvEgaIimFcLqMvlJ
    M6SQmAscKB4fRQDq

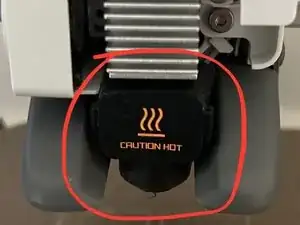

    • Pull off rubber sock from nozzle

  4. lXSaHJMMXvncjguZ
    lXSaHJMMXvncjguZ
    yFSDMLFJAy2PQ2s5
    X4yfxTIKTAoTUI1d

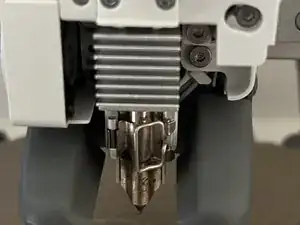

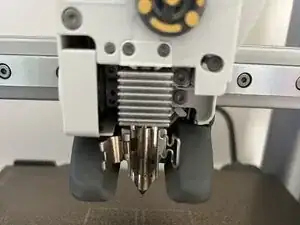

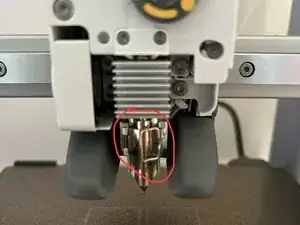

    • Undo the front latch

    • Secondly move the second part of the latch

  5. RQSJgvjSXfWjhpnq
    RQSJgvjSXfWjhpnq
    BQkbEJXkxHKFIdYx

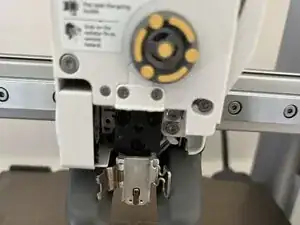

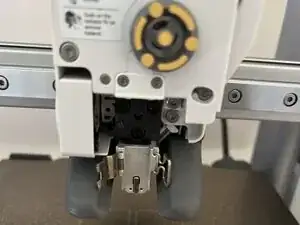

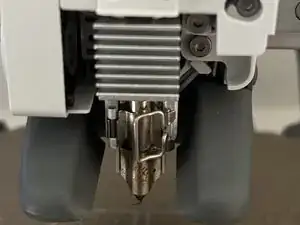

    • Pull out the hotend

  6. XldNcYVcohEbP1sv
    XldNcYVcohEbP1sv
    AXhQjnxJfQotLkrL

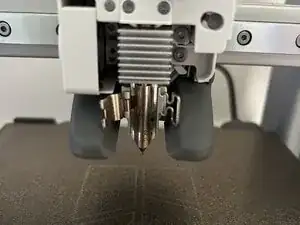

    • Place the new hotend where you just took the old one out of

Conclusion

To reassemble your device, follow these instructions in reverse order.
