Asus Vivobook Flip 14 TP410U Motherboard Replacement

Written By: Dominic Bento
  • Comments: 0
Asus Vivobook Flip 14 TP410U Motherboard Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

This guide provides instructions for replacing the motherboard on an Asus Vivobook Flip 14 TP410U laptop.

  1. qgRfoK1V4BXqZNvJ

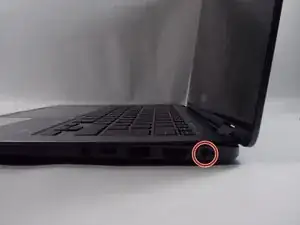

    • Unplug the power cable from the laptop and assure that the laptop is completely turned off.

  2. PNAU5ZJbu2vIeHn3

    • Use a Phillips #00 screwdriver to remove the eleven 12.8 mm screws from the bottom cover.

  3. EFGrcEbcGMdPCAu6
    EFGrcEbcGMdPCAu6
    jRFCyRHPuGiSsVFa
    glfTgGT2fIoOD2Tc

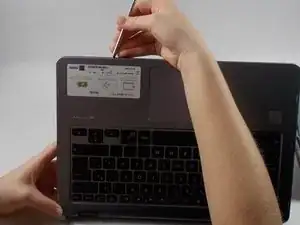

    • Flip the laptop 360 degrees. This makes opening up the back cover easier and causes less harm to the components.

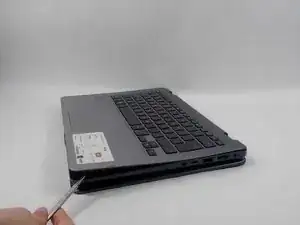

    • Insert the opening tool in between the back cover and keyboard.

    • Apply pressure and undo all of the "snaps" that are connecting the back cover and keyboard.

  4. xYWSmUmju3FxhBmU
    xYWSmUmju3FxhBmU
    1XslcCw4sKOcG3oO

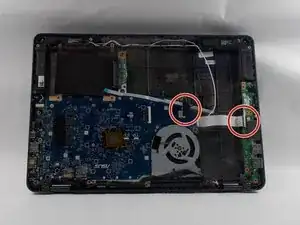

    • Remove each cable connected to the HD audio, Wi-Fi card, and touchpad.

    • Excessive force may cause permanent damage to the cables.

  5. ONgOlbIsKqbJLVvj

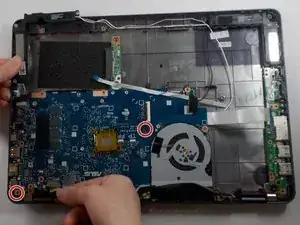

    • Unscrew and remove the ten 6.4 mm Phillips #00 screws that are outlined in the photo.

    • Remove the connector connecting the front display to the motherboard.

    • Excessive force when unplugging each connector may cause permanent damage to the cable.

  6. UrSKYHI3RSIDIeJJ
    UrSKYHI3RSIDIeJJ
    WhEqkmEopiuAycUo

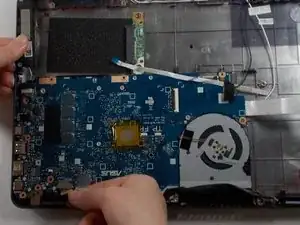

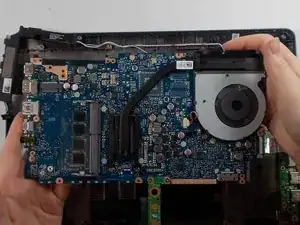

    • Remove the motherboard by pulling the motherboard away from the I/O Ports on the side of the laptop.

    • Excessive force may cause damages to other components in laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
