Asus VivoBook X540SA-BPD0602V Speaker Replacement

Written By: Taylor Peters
  • Comments: 1
Asus VivoBook X540SA-BPD0602V Speaker Replacement

Difficulty

Moderate

Steps

17

Time Required

7 - 10 minutes

Introduction

Through the course of normal use, it is possible that the in-built speakers in the Asus Vivobook X540SA will become damaged or stop functioning. In this guide, the user will find step-by-step instructions for opening up the device, accessing the speakers, and removing them.

  1. E3iuiAt4O5EKgVox

    • Power down the laptop using the device's power button in top right corner of the keyboard. Ensure that the device's power cord is disconnected.

  2. Ccg5uYZp6prhXEHp

    • Flip the laptop over so the back panel is displayed.

  3. CdHjEFidCUCEQDZM

    • Using a Phillips #1 screwdriver, remove the ten screws from the back panel.

    • Remove the two battery screws (15.6 mm)

    • Two top corner screws (12.5 mm)

    • Six case screws (9.7mm)

  4. NBm4tVPgVFTKYvbU

    • Flip the laptop back over and open it, revealing the screen and keyboard.

  5. nqVieglwdWwJclN4

    • Using the blue plastic opening tool, wedge and loosen the seal all the way around the edges. Carefully lift up the keyboard panel.

    • When lifting the keyboard panel, do not lift it all the way as the two connection ribbons to the motherboard must be disconnected.

    • It is recommended to break the seal of the case starting at the upper corners closest to the display monitor .

  6. QvvLGdeKjYsL5ZUZ

    • Observe where the ribbons connect to the motherboard, there are two connections. Each connection has a black clamp. To remove the ribbon, lift the black clamp up to disconnect it.

  7. aswnMWnfdeRccZ6t

    • Very carefully, remove the batteries with the blue plastic iFixit opening tool. Focus removing the battery near the highlighted area.

    • The batteries should all be connected to one another and come out of the device as a single unit.

    • Be careful not to rip any of the black plastic covering the batteries. Exposed battery parts can lead to explosions. If the case is ripped, re-wrap them, or properly dispose of them. Do not reuse them.

  8. OQWFOvVlSZmFUbXO

    • The Disk Drive is located within the upper right hand corner of the laptop.

  9. cAXwgwUGolSQrW2C

    • Using a Phillips #0 screwdriver, remove the two screws (5.6 mm) around the disc drive.

    • Note which screws go where. The two smaller screws fasten onto the disc drive, while the three larger screws secure the drive on the outside.

  10. et1qDiXquoj2haxF

    • Use the Phillips #00 screwdriver to remove the two screws (2.7 mm) on the side of the disc drive fastener.

  11. wwbATFpvrZwCOYkO

    • After removing the seven screws, lift the metal fastener from the disc drive with the plastic opening tool.

  12. kAumQPaEhhxU64HM

    • Slide the disc drive to the right, removing it from the laptop case.

  13. oMYS12v6GhBCOSHx

    • The Hard Drive is located in the bottom right hand corner. It should be the device covered in black foam.

    • Do not remove the foam. It's anti-static foam and protects the hard drive from static and any bumps as you move around your device.

  14. cAOG6WFZ5eWEPRev

    • Using the Phillips #0 screwdriver, unscrew the four (5.7cm) screws around the hard drive.

  15. RbyUM1l1JAkAZv61

    • Using the blue plastic opening tool in the iFixit tool kit, slide the hard drive to the right to remove it from the case.

    • Some models don't come with a foam insert. This will cause a bit of a rattle if you're replacing the old hard drive with an SSD drive.

    Looks like the author neglected to describe removing the hard disk from the hard drive caddy. I assume I assume there are 4 screws, 2 on each side. If the reader never replaced a laptop hard drive, they may think the laptop has a special hard drive, not a standard hard drive. Thank you for the well-done Jessica.

    Johnny -

  16. H6jFAHAiLCBZXj4a
    H6jFAHAiLCBZXj4a
    YdAxDMMmaQ4wxZro

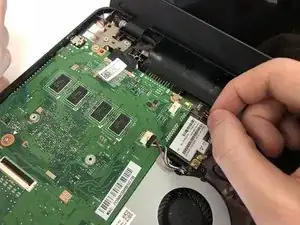

    • Disconnect speaker wire from motherboard.

  17. nbZWWhT3krCPPYO6
    nbZWWhT3krCPPYO6
    uJi5uZSlfd2ihLJc
    TQaDTFujPCynISfx

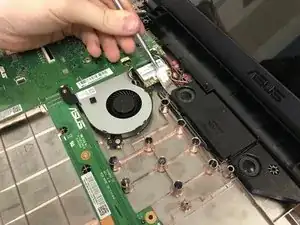

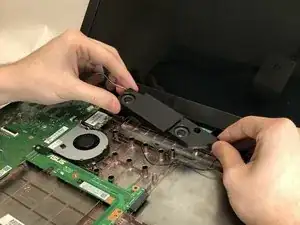

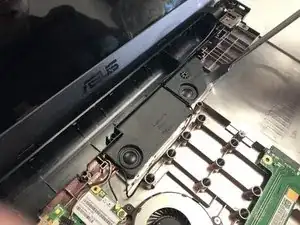

    • Gently use the metal spudger to loosen speaker from adhesive, by first loosening the far right side and working your way to the left.

    • When removing the speaker, you may hear a cracking sound. This is okay; it is just the speaker separating from the adhesive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
