Asus U47VC-DS51 LCD Screen Replacement

Written By: Brady Roberson
  • Comments: 2
Asus U47VC-DS51 LCD Screen Replacement

Difficulty

Moderate

Steps

8

Time Required

6 minutes

Introduction

This guide demonstrates how to replace the LED screen. There are ZIF connectors and a face place.

  1. tneJiuG25R3RGhei
    tneJiuG25R3RGhei
    Zci6Voa4RtQSiRlg

    • Remove 9 screws from bottom of notebook using PH00 bit + 1 under hard drive bay.

    • Remove 3 screws from bottom of notebook using PH00 bit. 1 is same screw spec as the other 9, and 2 are shorter.

  2. T6V1OpZgK3S2RMJX
    T6V1OpZgK3S2RMJX
    I2FTpmtdxsvgrDtp

    • Using the black spudger, insert its flat end between the crevice where the color changes from grey to black.

    • The keyboard is very tightly secured.

    • Carefully ease the spudger's end along the crevice, going around the entire frame.

    • The back connectors are short, so be careful when lifting.

    You need to remove a total of 13 screws from the bottom of the laptop BEFORE prying the keyboard section off the laptop. See pics  https://imgur.com/a/h5d1zJ1

    danwat1234 -

  3. IT1ATvigddJRUTRv
    IT1ATvigddJRUTRv
    2UBosMcEprMokbQb

    • Lift the keyboard from the front where it is closest to the screen.

    • Disconnect the large and small ZIF connectors attached to the motherboard by flipping the light-colored part of the switch.

  4. Rr1GZymRKyMLCLrY
    Rr1GZymRKyMLCLrY
    p6FnyIdLHyMsawDP

    • Remove the third and last ZIF connector on the motherboard by flipping up the dark-colored part of the switch.

    • Now, the component should come completely free.

  5. YhLaNmbonPAxXdFP

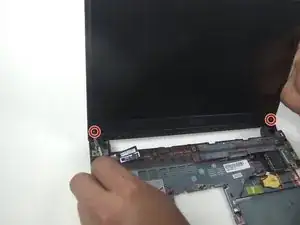

    • Unscrew the two 4mm phillips head #00 screws.

  6. JlZnGCSdfQuVxIPY
    JlZnGCSdfQuVxIPY
    JBovZLCChpWvUhBg
    wiiXMhmBvYhLpkw6

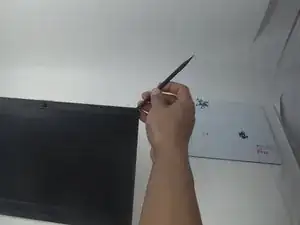

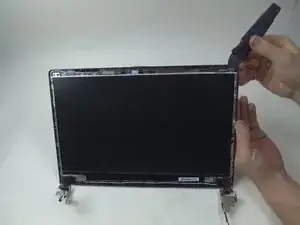

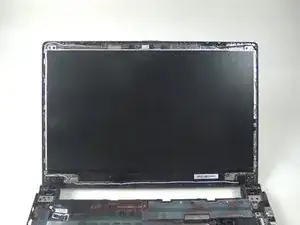

    • Use the black spudger to pry the face plate off.

    • The face plate is attached with adhesive.

    • Gently peel the face plate from the base.

  7. s2s4e62PQ3SAvGuY
    s2s4e62PQ3SAvGuY
    vBHEIRo6CN3PNX6u
    SrBRKTrFCadEySHu

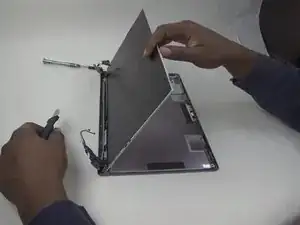

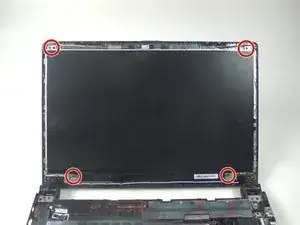

    • Unscrew the four 3mm Phillips head #00 screws holding the screen to the base.

    • When sitting upright, the screen should fall forward from the top.

  8. 4dWbE1sHVqyctk1x
    4dWbE1sHVqyctk1x
    gdySgifpxBaFGoxk

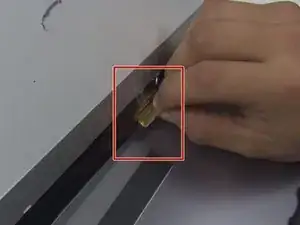

    • Unease the yellow connecting tape with the spudger at the bottom of the screen.

    • Pull the connector straight down and it will disconnect fairly easy.

    • The screen should then be free to be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
