Introduction
This guide will be going over on how to replace the wifi card of an Asus L410MA-Ts02. If your wifi card is damaged or poorly working due to age, this is the necessary guide to use to replace it with a new one. It will go over on how properly remove and replace the wifi card on a step by step basis and the necessary tools required to do so in a simple, comprehensive way in doing so and on how to replace it with a new one to allow your device to properly connect to wireless networks.
Tools
-
-
Remove ten 6 mm screws that secure the lower case using a Phillips #1 screwdriver.
-

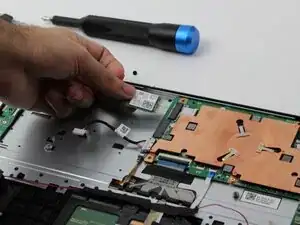

Carefully remove the lower case.
-
-
-

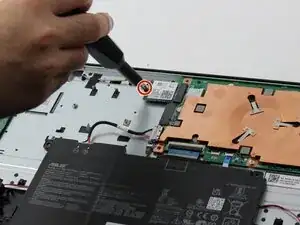

Remove the 6 mm screw attached to the Wi-Fi card using a Phillips #1 screwdriver.
-

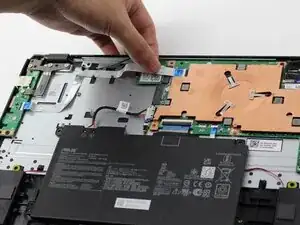

Unplug the black wire that is connected to the Wi-Fi card.
-
To reassemble your device, follow these instructions in reverse order.
