Introduction
This guide can be used to replace the daughterboard in the Asus L410MA-Ts02 laptop. You may want to remove or change the daughterboard from your laptop in case that piece of hardware had degraded or been worn out overtime to the point where it won't read any inputs you plug in. By replacing the daughterboard, it creates a write cache to get better performance and speedy data transfer from your computer.
Tools
-
-

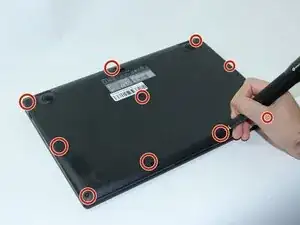

Remove ten 6 mm screws that secure the lower case using a Phillips #1 screwdriver.
-

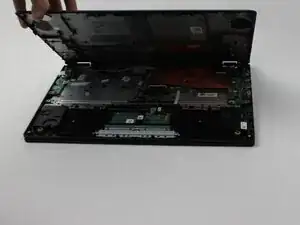

Carefully remove the lower case.
-
-
-

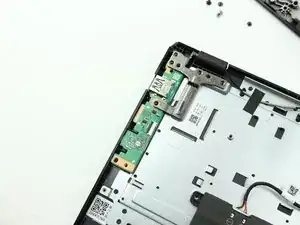

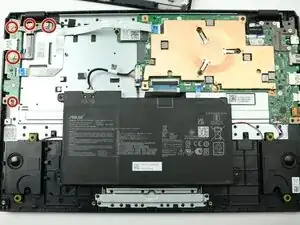

Remove the 4 mm screws from the clamp that is holding down the daughterboard using a Phillips #1 screwdriver.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
