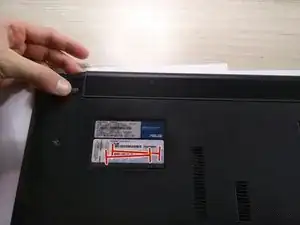

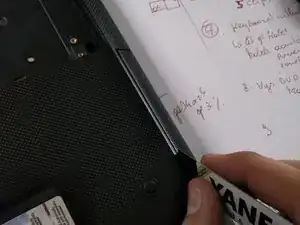

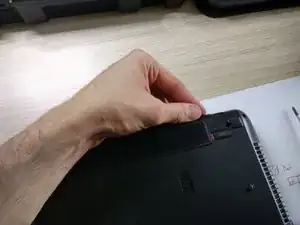

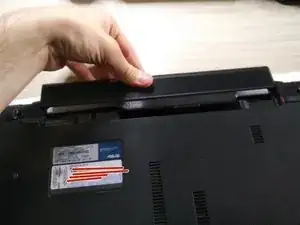

            remove battery by sliding the two release buttons to the right position.
-
            slide the battery away from the laptop

-

-

                  -

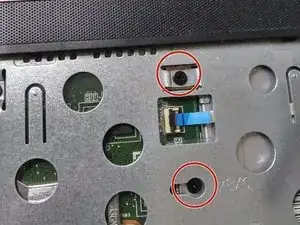

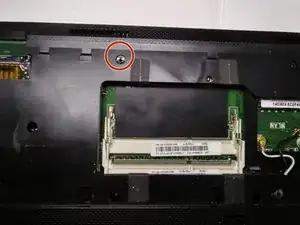

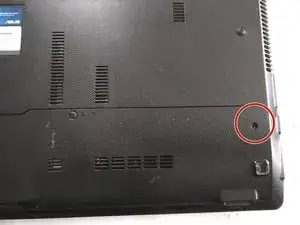

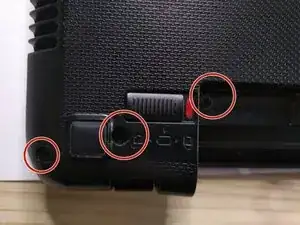

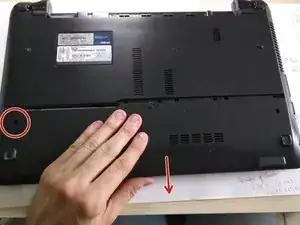

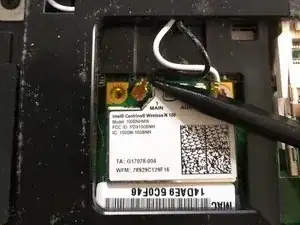

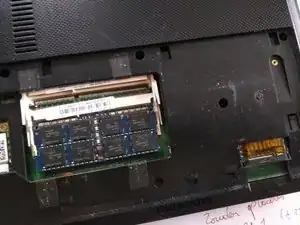

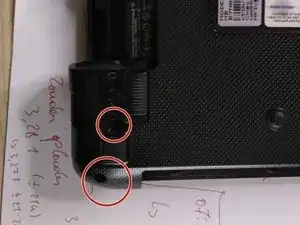

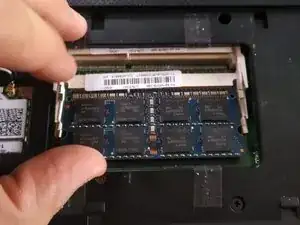

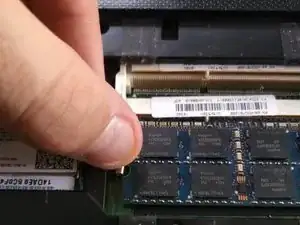

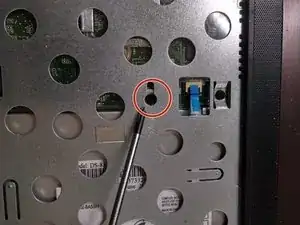

            remove the 2 screws holding the plastic plate , underneath is the RAM/ WiFi and HDD
-

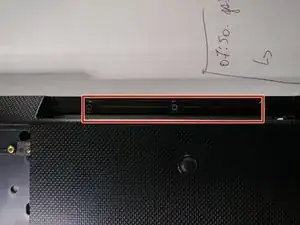

            the 2 screws are marked in red. afterwarts slide it away from the laptop

-

-

                  -

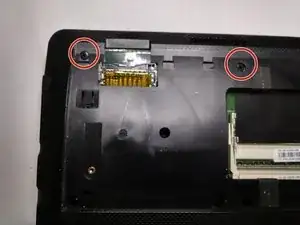

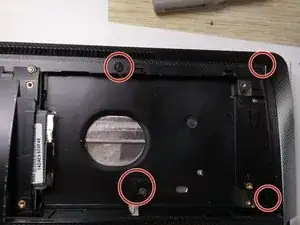

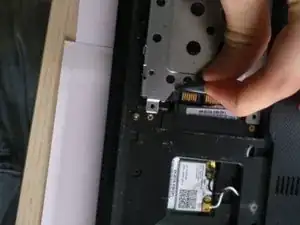

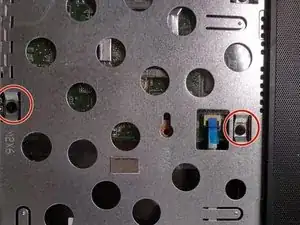

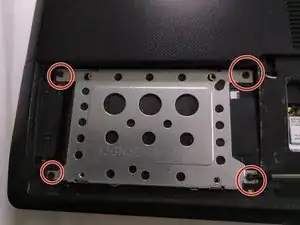

            remove the 4 screws holding the metal frame , holding the hdd to it's place.
-

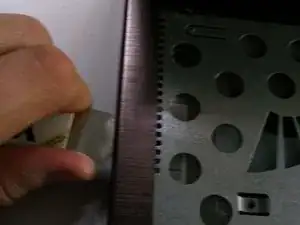

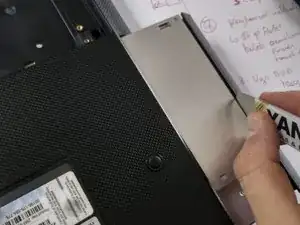

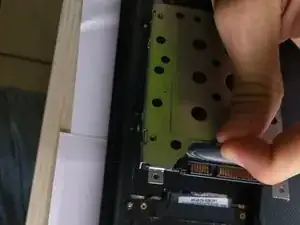

            slide the frame and hard disk away from the case.

-

-

                  -

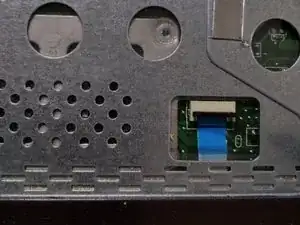

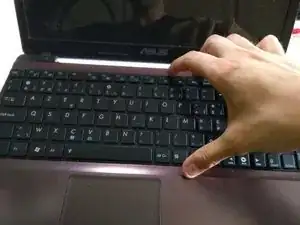

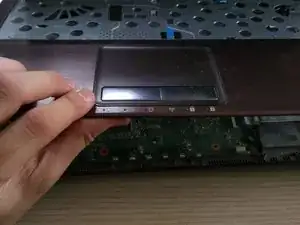

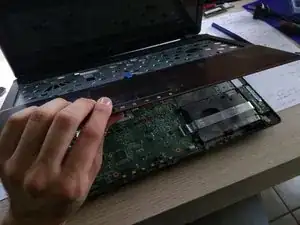

            be carefull with the flat cable from the keyboard.
-

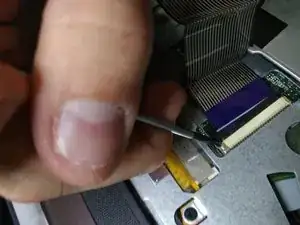

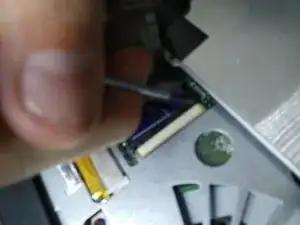

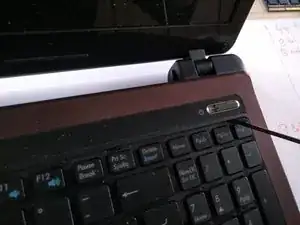

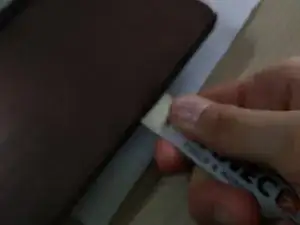

            use a spudger to click the connector lid loose.
-

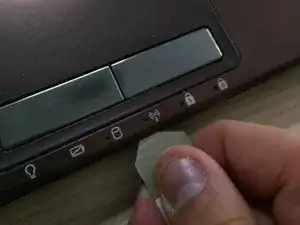

            i used the tip of a screwdriver.. but i know what i am doing.. if you are use to work on laptops you can use a screwdriver, if not use a plastic spudger.

-

-

                  -

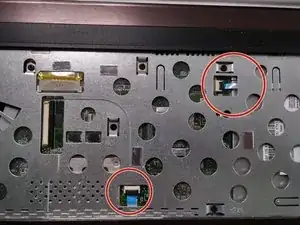

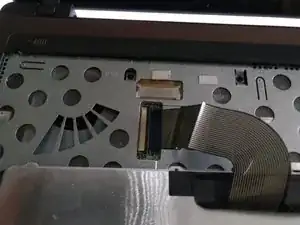

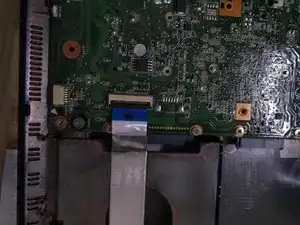

            remove the flat thin cables from there sockets.
-
            use a spudger , click the lid upwards and slide the flat cable out.

-

-

                  -

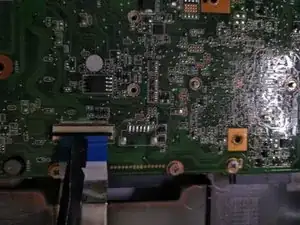

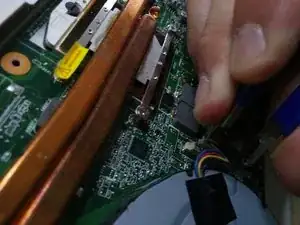

            remove the flat cable of the USB module , use a spudger to lift up the lid of the connector.
-
            gently slide out the flat cable

-

-

                  -

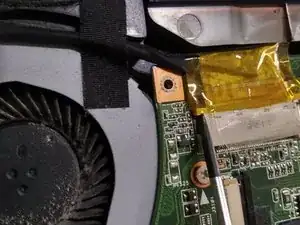

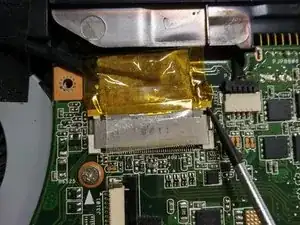

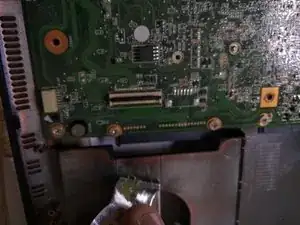

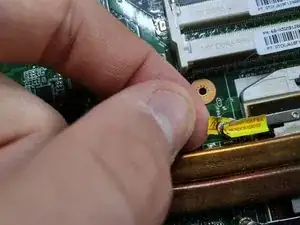

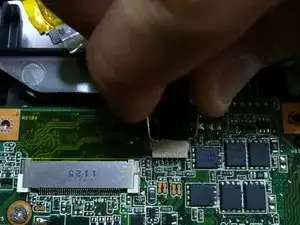

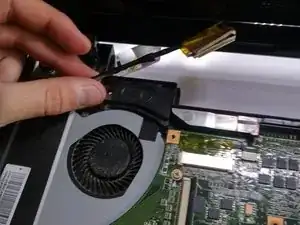

            use the tip of a spudger or a tiny flathead screwdriver to push out the LCD cable from connector.
-
            be very very very carefull , if you tear tis cable or damage it , you will have to buy a new one.
-
            first lift the cable metal connector upwards ( push it out) , very gently, then the other side untill you can remove the cable.

-

-

                  -

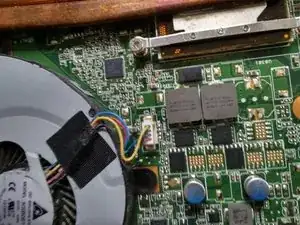

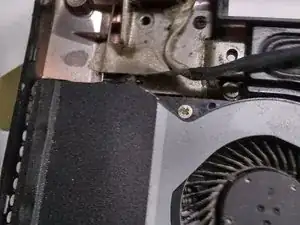

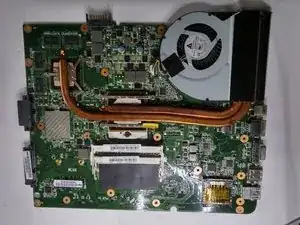

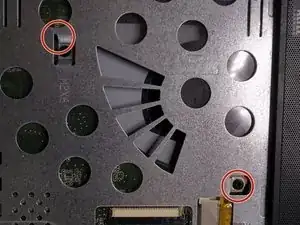

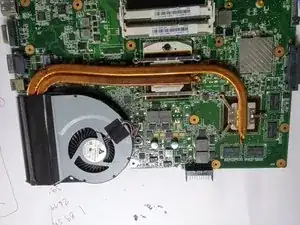

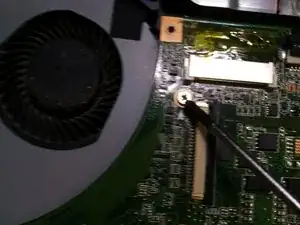

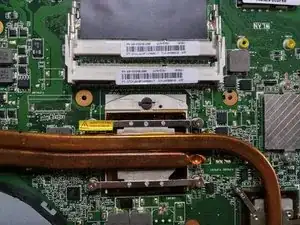

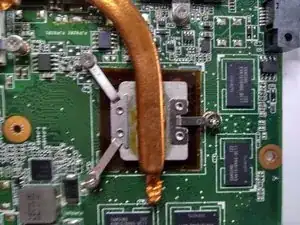

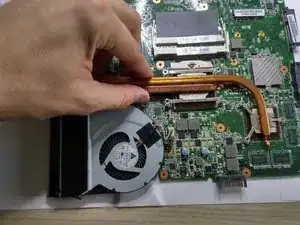

            loosen up the screws from the cooling pads on the CPU and GPU.
-
            You will have to tear the warranty sticker. it is a sticker in 3 parts.

-

-

                  -

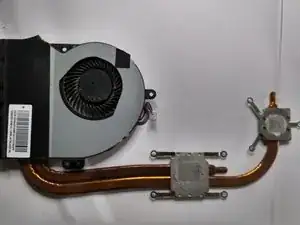

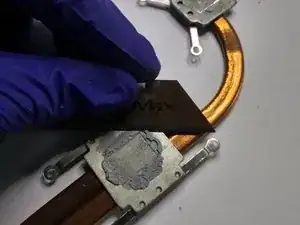

            clean the cooling pads with an very sharp knife. or spudger..
-
            wear gloves, cause the thermal paste is very toxic.
-
            also this is a good time to blow out the fan with compressed air.

-

-

                  -

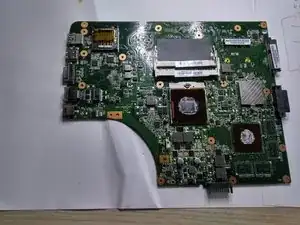

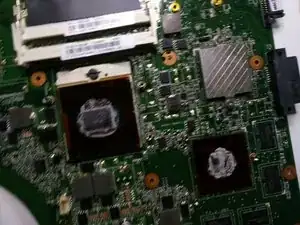

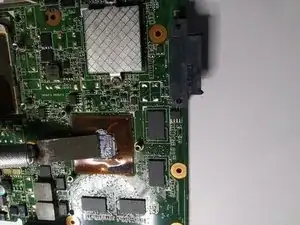

            remove the old thermal paste from the processors , be very carefull. and use some artic silver liquid to clean them. and easely remove the thermal paste.
-

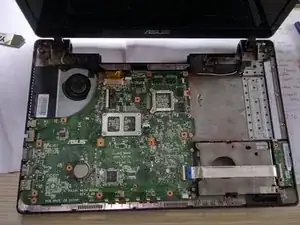

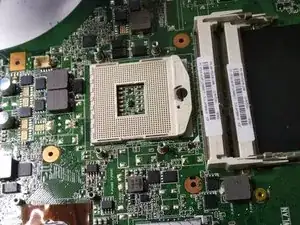

            you can remove the CPU by using a flathead screwdriver , the socket will move and you can pull the CPU out , maybe a good time to upgrade the CPU.

-

-

                  -
            unfortunately i don't have a picture when i added some new thermal paste. But if you do: one drop on each processor is enough.

-

To reassemble your device, follow these instructions in reverse order.
