Arlo Pro 2 Base Station Sensors Replacement

Written By: Ben I.

Comments: 0

Arlo Pro 2 Base Station Sensors Replacement

Difficulty

Moderate

Steps

Time Required

10 - 15 minutes

Introduction

If you are trouble connecting Arlo Pro 2 base station to the camera sensor, connecting to your home WiFi, or cellular device, use this guide to replace the base station’s sensors.

The sensors are meant to transmit the cameras motion capture to the users connected device. If the sensors are damaged this may cause the camera recording to not transfer to the cellular device or cause the unit to be unable to connect to a local network.

Before beginning me ensure the device is disconnected from any external power source.

Tools

TR10 Torx Security Screwdriver

Step 1

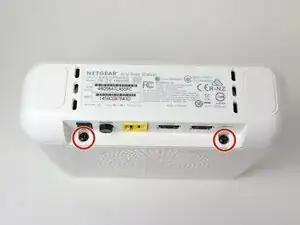

Use a TR10 Torx screwdriver to remove the two 10 mm screws on the side of the base station, above the USB ports.

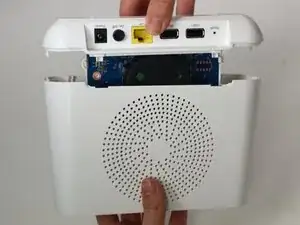

Pull apart the top case from the bottom.
This may require some force as there are internal catches.

Step 2

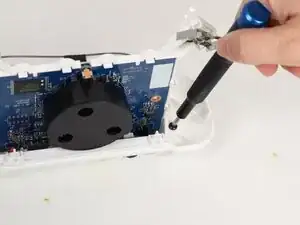

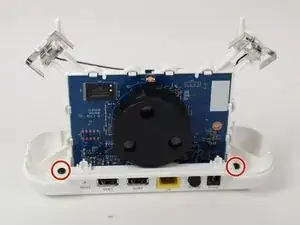

Use a TR10 Torx screwdriver to remove the two 10 mm screws to disconnect the motherboard from the base casing.
The motherboard is connected to the USB ports; when removing it be careful to gently remove the USB ports from their cavities to avoid any damage.

Step 3

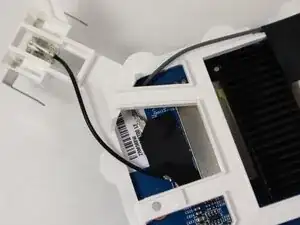

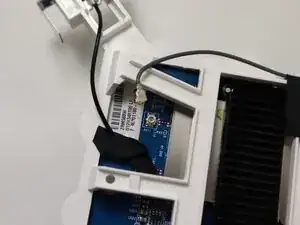

Follow the black wire running from each thin metal sensor to the motherboard; they will be connected under a piece of black tape.

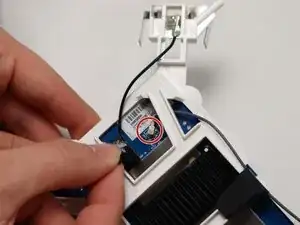

Pull back the black tape to see where the wire you are following attaches to the motherboard.
Pull up on the coaxial connector to disconnect the wire from the motherboard.

Step 4

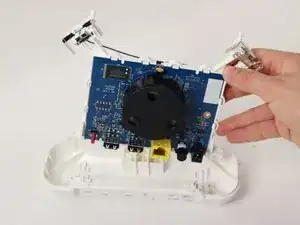

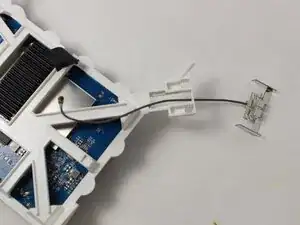

Snake the wires through any place where it goes through the plastic casing.

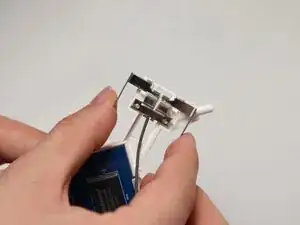

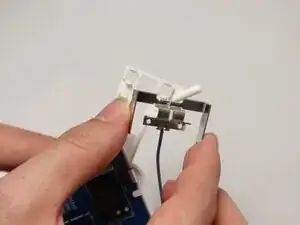

Gently pull the metal sensor away from the plastic casing to fully disconnect it from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
