Aorus X7 v2 mSATA SSDs Replacement

Written By: Eric Holmes
  • Comments: 0
Aorus X7 v2 mSATA SSDs Replacement

Difficulty

Very easy

Steps

3

Time Required

No estimate

Introduction

Open laptop and identify where the mSATA ports are for replacing or upgrading the SSDs.

  1. 3Op44R5w6kRTaTd1

    • We'll be working with the x7v2 configuration 2

  2. Gof4pqLWZT6QjCaN
    Gof4pqLWZT6QjCaN
    dceGFNUjMIlofWik
    4IFZXEHW3OvJUVPs

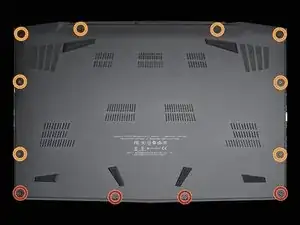

    • Take out the 12 T^ torx screws around the edge. No particular order is required.

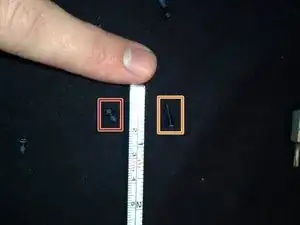

    • Short ones

    • Longer ones

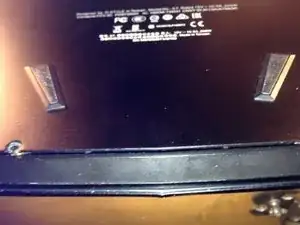

    • A small gap will appear after removing the bottom ones, this is acceptable.

    • The Panel has clips at the rear and slides out to the left.

    • the front and left side have no clips or extras

  3. AlrSKMVI5Oh5Zggt
    AlrSKMVI5Oh5Zggt
    KE6IgYjkj4CaPImy
    uYce6xBEHrNL4ZCW

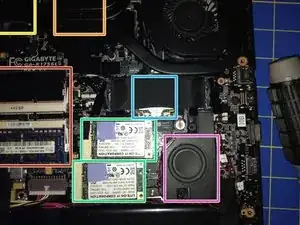

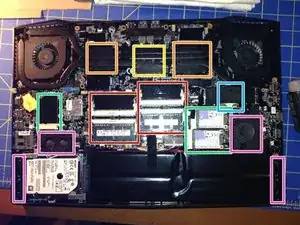

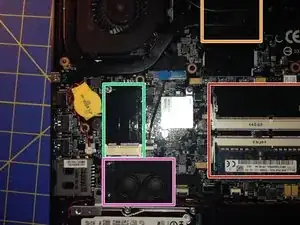

    • An Overview of Parts

    • 4 Slots DDR3L - up to 32GB

    • 2x 860M NVIDIA GTX Graphics

    • intel i7-4860HQ

    • 3x mSATA half cards for SSD's. Replace or insert the appropriate card.

    • RF module

    • Speaker system of Aorus x7

Conclusion

To reassemble your device, follow these instructions in reverse order.
