Introduction
This antique 1935 Singer machine is missing the adjustable thread guide.
-
-

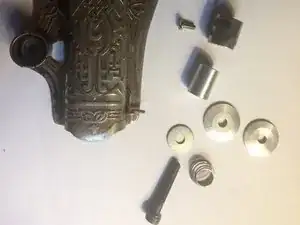

You will need a lathe to machine appropriately sized elements to replace the mechanism.
-
I used alumunium for the machined elements. Use high speed to obtain smooth surface as you need the thread to slide correctly.
-

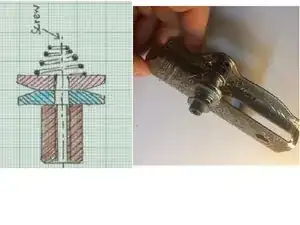

The assembly may be done used an M5 screw and a cone spring as shown.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
