Anker Soundcore Motion Boom Plus Tweeter Replacement

Written By: Hayley
  • Comments: 0
Anker Soundcore Motion Boom Plus Tweeter Replacement

Difficulty

Moderate

Steps

12

Time Required

35 - 55 minutes

Introduction

This guide will help you replace the Anker Soundcore Motion Boom Plus tweeters. The tweeters are the smaller speakers on the side of the device designed to reproduce high-frequency sounds. If your device is experiencing distorted or crackling sounds, the tweeters may be damaged and require replacement. Be sure to turn off the device before taking it apart and use the tools recommended to avoid any damage to the device.

  1. XWGiE32O41PfdGxm
    XWGiE32O41PfdGxm
    oE26Mfx1SHJ5Qaif
    hFroDkoGGHHFYKUU

    • Insert an opening tool into the seam between the speaker grille and the chassis.

    • Pry the tool around the top, bottom, and sides until the grille fully releases.

    • Apply gentle pressure to avoid damaging the grille.

    • Remove the grille.

  2. mYQBEn23nwThq3PE
    mYQBEn23nwThq3PE
    VTDmFMZxkgUKJ1Pv

    • Remove the two passive radiators on either side of the device.

    • Avoid pulling too hard or with too much force to prevent breaking the passive radiators.

  3. RPTdMNIRIwTtutc3
    RPTdMNIRIwTtutc3
    tX1cBsCKJVIgJg3P

    • Remove the sixteen 14 mm Phillips screws, eight on each end of the speaker.

  4. d4f6y52lIyCQIeqM
    d4f6y52lIyCQIeqM
    vgjHVsLtpUC2BBD5
    x6Op5WpkHseI4mxH

    • Gently remove the handle from the device by clicking off the handles from the sides and then pulling it off.

  5. KhEZUtigO4mxMmJG
    KhEZUtigO4mxMmJG
    fJJUxtuVocFRMgUZ

    • Flip the speaker onto its side and use a spudger to remove the two rubber feet on the bottom of the device.

  6. CDp4HSupNkYQneey
    CDp4HSupNkYQneey
    ZmboJVJOIPYfpbnD

    • Remove the eleven 13 mm Philips screws that secure the driver housing.

  7. hg2HVC3SX3FonWPV
    hg2HVC3SX3FonWPV
    TkDVpEIBH2m4Gfix

    • Remove the two 14 mm Phillips screws located on each side of the handle, near the clip points.

  8. U2fks2XxoYvRkRhA
    U2fks2XxoYvRkRhA
    5hTBSrESYWHiKXA4

    • Remove the four 14 mm Philips screws on the top of the device.

  9. KPH65eOXVVdNE2tS

    • Insert a spudger into the seam on top of the device.

    • Gently pry the casing open.

  10. ne2XVrmIxKtTsLxo
    ne2XVrmIxKtTsLxo
    ZCFAnSwUShPQSMFe
    hVDgitxCqvixFIBH

    • Disconnect each of the three cables by gently pulling the connectors out of their sockets.

    • Do not pull with force. The ribbon cables are fragile and easily break.

  11. WZI2YecGHKsP2RF6
    WZI2YecGHKsP2RF6
    R6NOn1fEf4llFer3

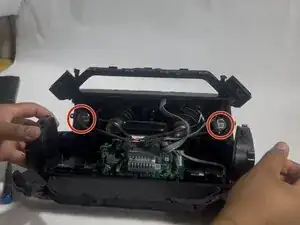

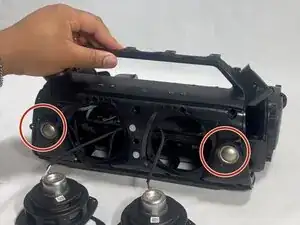

    • Disconnect the ribbon cables attached to the tweeters by pulling them off gently.

    • Avoid pulling too hard on the ribbon cables as they are fragile and easily break.

  12. QQmJJ6NA3mvIj5i6

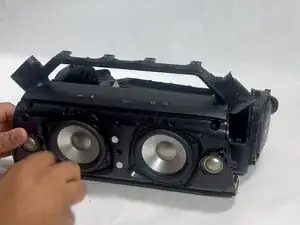

    • Push the tweeters from the front side, and the tweeters should pop out. Remove and replace the tweeters with new ones.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
