Anker Soundcore Motion Boom Plus Charging Port Replacement

Written By: Hayley
  • Comments: 0
Anker Soundcore Motion Boom Plus Charging Port Replacement

Difficulty

Moderate

Steps

16

Time Required

35 minutes - 1 hour

Introduction

This guide will walk you through replacing the charging port on the Anker Soundcore Motion Boom Plus. The charging port allows the speaker to recharge the battery. If your device won't charge or only charges when the cable is positioned a certain way, it could be a faulty issue with the charging port.

Power off the device and use the suggested tools to prevent any damage to the device.

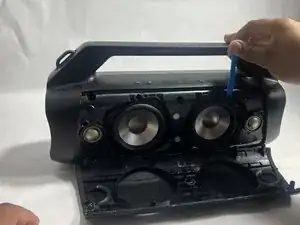

  1. XWGiE32O41PfdGxm
    XWGiE32O41PfdGxm
    oE26Mfx1SHJ5Qaif

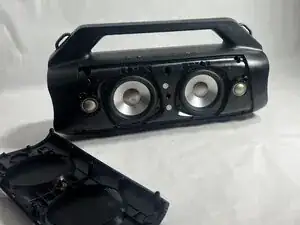

    hFroDkoGGHHFYKUU

    • Insert an opening tool into the seam between the speaker grille and the chassis.

    • Pry the tool around the top, bottom, and sides until the grille fully releases.

    • Apply gentle pressure to avoid damaging the grille.

    • Remove the grille.

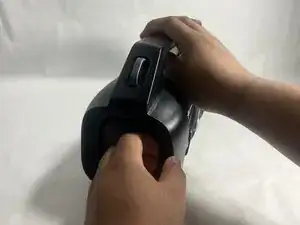

  2. mYQBEn23nwThq3PE
    mYQBEn23nwThq3PE

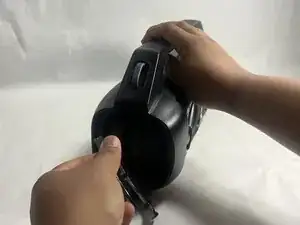

    VTDmFMZxkgUKJ1Pv

    • Remove the two passive radiators on either side of the device.

    • Avoid pulling too hard or with too much force to prevent breaking the passive radiators.

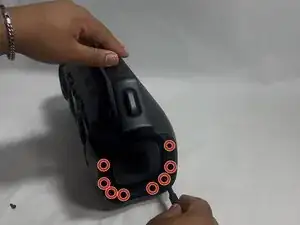

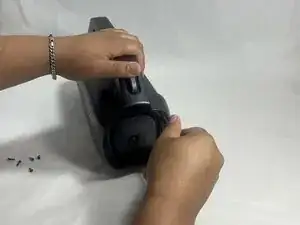

  3. RPTdMNIRIwTtutc3
    RPTdMNIRIwTtutc3
    tX1cBsCKJVIgJg3P

    • Remove the sixteen 14 mm Phillips screws, eight on each end of the speaker.

  4. d4f6y52lIyCQIeqM

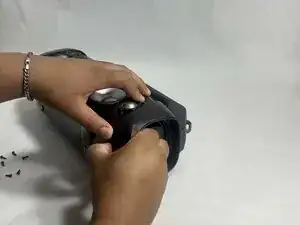

    d4f6y52lIyCQIeqM
    vgjHVsLtpUC2BBD5
    x6Op5WpkHseI4mxH

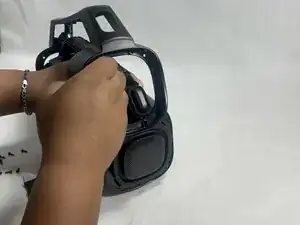

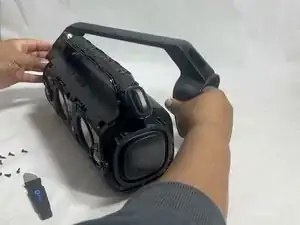

    • Gently remove the handle from the device by clicking off the handles from the sides and then pulling it off.

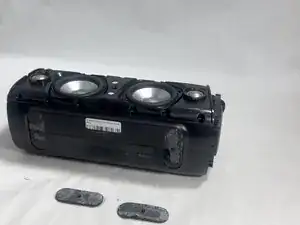

  5. KhEZUtigO4mxMmJG
    KhEZUtigO4mxMmJG
    fJJUxtuVocFRMgUZ

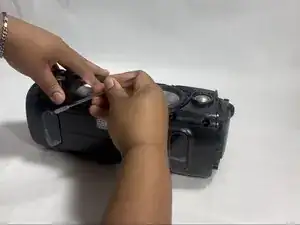

    • Flip the speaker onto its side and use a spudger to remove the two rubber feet on the bottom of the device.

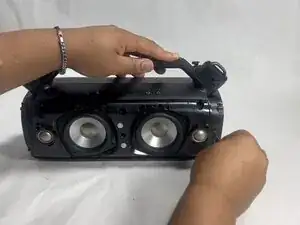

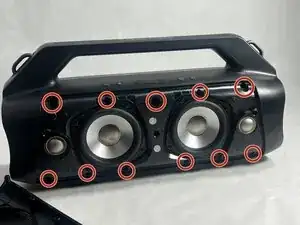

  6. CDp4HSupNkYQneey
    CDp4HSupNkYQneey
    ZmboJVJOIPYfpbnD

    • Remove the eleven 13 mm Philips screws that secure the driver housing.

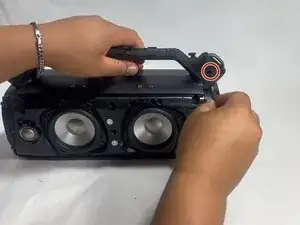

  7. hg2HVC3SX3FonWPV
    hg2HVC3SX3FonWPV
    TkDVpEIBH2m4Gfix

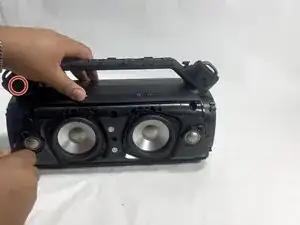

    • Remove the two 14 mm Phillips screws located on each side of the handle, near the clip points.

  8. U2fks2XxoYvRkRhA
    U2fks2XxoYvRkRhA
    5hTBSrESYWHiKXA4

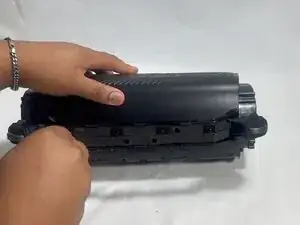

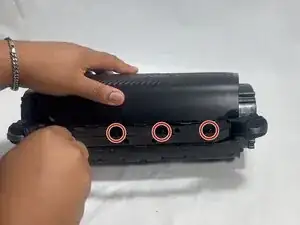

    • Remove the four 14 mm Philips screws on the top of the device.

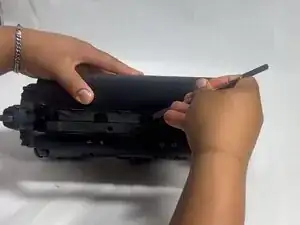

  9. KPH65eOXVVdNE2tS

    • Insert a spudger into the seam on top of the device.

    • Gently pry the casing open.

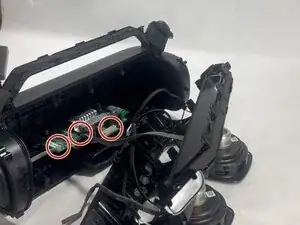

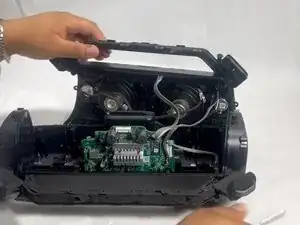

  10. ne2XVrmIxKtTsLxo
    ne2XVrmIxKtTsLxo
    ZCFAnSwUShPQSMFe

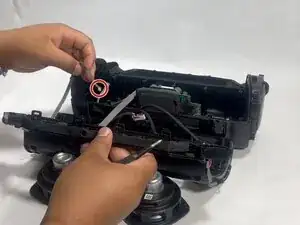

    hVDgitxCqvixFIBH

    • Disconnect each of the three cables by gently pulling the connectors out of their sockets.

    • Do not pull with force. The ribbon cables are fragile and easily break.

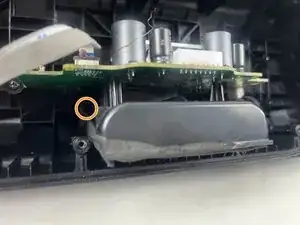

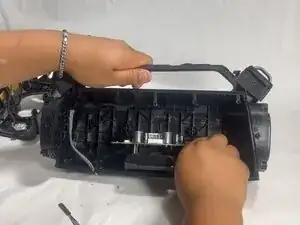

  11. fFMDKWhgbGkALA1V
    fFMDKWhgbGkALA1V
    kQVHtTNwVTAXeFXo
    wuHNV26VwG52Uprd

    • Remove the three 12 mm Phillips screws securing the motherboard to the case.

    • Remove the two 10 mm Phillips screws surrounding the battery.

  12. sTGmpMMdKiTegUQo
    sTGmpMMdKiTegUQo
    QEafNwPHRRvL2N1Z

    • Flip the speaker over and push the charging port inward.

  13. RhOZCdgDIfiA3x3r
    RhOZCdgDIfiA3x3r

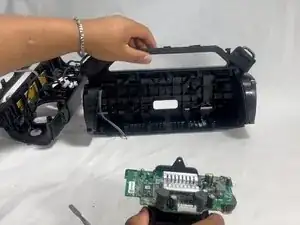

    Di4fc1dMNQyckvHI

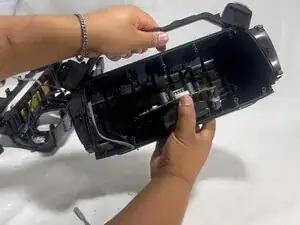

    • Slide the motherboard and battery out by pushing through the charging port.

    • The motherboard and battery assembly should detach easily.

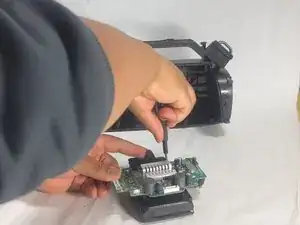

  14. wp215ZXR2A5t4QeM
    wp215ZXR2A5t4QeM
    n2GSX3crlPqZxfl6

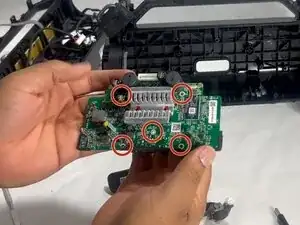

    • Remove the five 10 mm Phillips screws securing the motherboard and battery together.

    • Gently lift the motherboard from the battery once all screws are removed.

    • Handle with care to avoid damaging any of the components.

  15. qtXK4iHXd4qgfDrd

    • Gently pull the motherboard and battery apart.

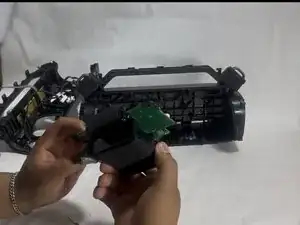

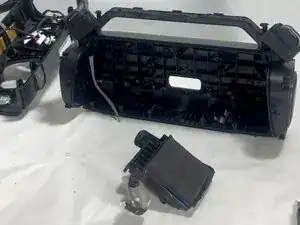

  16. 1IdohHFIJ16U3eap
    1IdohHFIJ16U3eap
    PpCKSBMOyTPAlLny

    • Remove the battery from the silicone/plastic holder and replace it.

    • The replacement should have a new charging port attached to it.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
