Introduction
In this guide, we will show you how to safely repair or replace the speaker in your Anbernic RG35XXSP handheld console.
If you're experiencing issues like distorted sound, no audio output, or unresponsive volume controls, your audio system may be damaged or worn out. By replacing the speaker or audio components you can restore clear sound and improve your overall gaming experience.
Common Causes
- No sound, even at full volume
- Static, buzzing, or distorted audio
- Audio cuts in and out during use
- Volume buttons or audio jack not responding
This guide includes all the steps and tips you’ll need to complete the repair safely and successfully.
Before you begin the repair, make sure to power off and unplug your device from the charger.
-
-
Use a Phillips #00 screwdriver to remove the single 5 mm screw securing the battery cover.
-
Lift the battery door and remove it.
-
-
-
Use a T6 Torx screwdriver to remove the four 5 mm screws.
-
Lift the whole back case with the battery up from the device.
-
-
-
Remove the battery from the back compartment and fit it through the gap in the back case.
-
Put the plastic case aside for reassembly.
-
-
-
Pinch the sides of the battery connector and slide it from the socket to disconnect the battery cable.
-
Remove the battery.
-
-
-

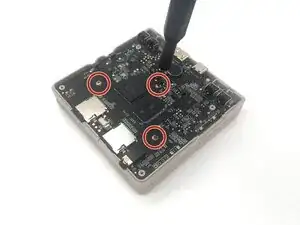

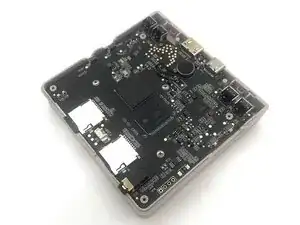

Use a Phillips #00 screwdriver to remove the three 5 mm screws that secure the motherboard.
-

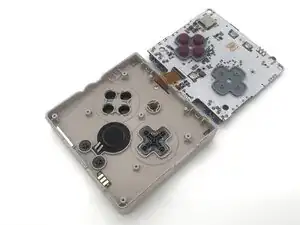

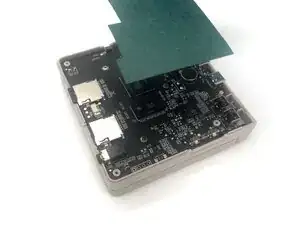

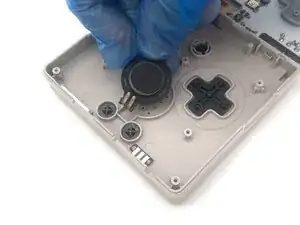

Lift up the motherboard from the main body and flip it to the other side to reveal the speaker.
-
To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
