Alienware M18x Internal Fan Replacement

Written By: Jonathan Panella
  • Comments: 0
Alienware M18x Internal Fan Replacement

Difficulty

Easy

Steps

7

Time Required

15 - 30 minutes

Introduction

There are three internal fans located in the Alienware M18x laptop. This guide will demonstrate how to go about removing said fans.

  1. yTLtAnSIWRhCLkSI
    yTLtAnSIWRhCLkSI
    tpIIB51AeymgVBl2
    aNAF1Y2pXPjTrxgx

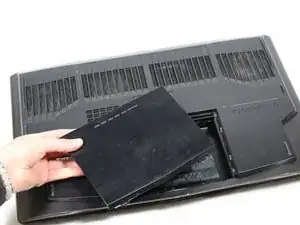

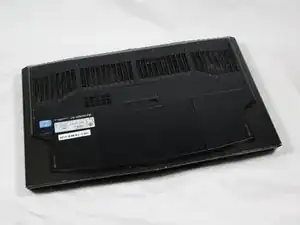

    • Turn the computer over.

    • Slide the battery latch over and lift the battery out.

  2. BZLRKmMRg1aCWHH6

    • Unscrew the four indicated screws with a J000 screwdriver.

  3. NC1Q2X3oEO5TFrYm
    NC1Q2X3oEO5TFrYm
    rPXLQLxTWa1S2Zme

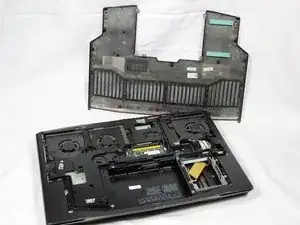

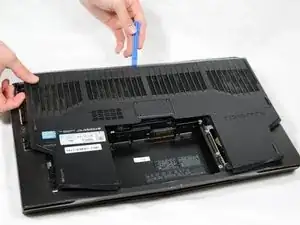

    • Use the plastic pryer tool to lift the bottom cover off.

  4. DHGwecSOZMrvFnXt
    DHGwecSOZMrvFnXt
    BsjDWqIbHvandhyR

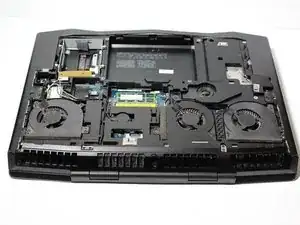

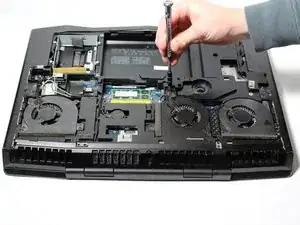

    • With the back cover removed, locate the desired fan to replace.

  5. eXkQi55wvKxYVpMj
    eXkQi55wvKxYVpMj
    R4QrWfcv5JdHN1kk
    dao4Xx43UxSSlgdH

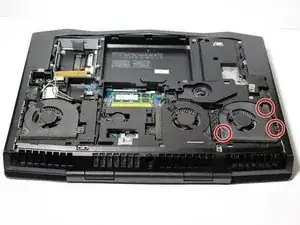

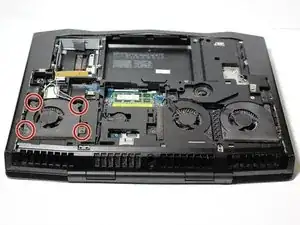

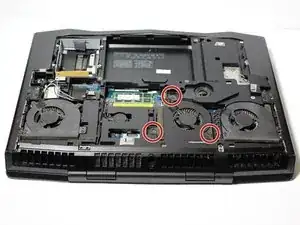

    • Use a J000 screwdriver to loosen the screws that secure the fan(s).

    • There are three internal fans within the laptop. Locate the correct screws to loosen for the desired fan to replace based on the provided corresponding images.

  6. YvoEMNA2Wsr2GgSA
    YvoEMNA2Wsr2GgSA
    Um1JUdUHbeOTjuL6
    gLHWLOWDgYMV3hvQ

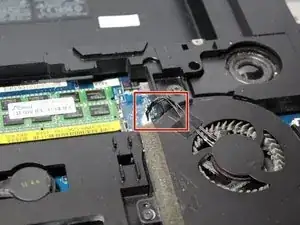

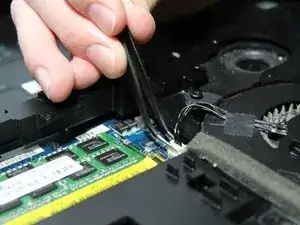

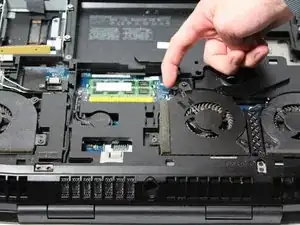

    • The fan will be connected to the motherboard by a cable. Use plastic tweezers to gently unplug this connection.

  7. MJDTo4IVxMqumMBb
    MJDTo4IVxMqumMBb
    QVdUmOlHVUVHqs2F

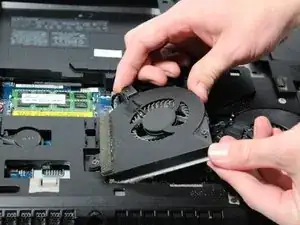

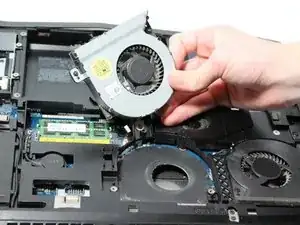

    • The fan is now fully disconnected from the computer. Gently remove the fan by lifting upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
