Alienware M17x P01E Cooling Fan Replacement

Written By: Kevin Palacios
  • Comments: 0
Alienware M17x P01E Cooling Fan Replacement

Difficulty

Easy

Steps

6

Time Required

7 - 10 minutes

Introduction

Is your device heating up unexpectedly or making loud noises? Consider using this guide to replace the fan of your device.

  1. QL3VNEJDU4TMEJ5L

    • Please power off the computer and deplete the battery before attempting the following step.

  2. KQUSuOGG6tKXmqvi
    KQUSuOGG6tKXmqvi
    4QNIwFPD4iXCHvaq

    • Press down on the battery latch and slide it to the left.

    • Lift the battery out once it pops out.

  3. ZAiuFh4ll6YVUZOn

    • Loosen the two silver Phillips #1 screws.

    • The screws are held to the compartment door by a washer and cannot be removed.

  4. T2MZfN1STu1rc2Zg
    T2MZfN1STu1rc2Zg
    AsZqdToaVrj4wiID

    • Use your hand to gently lift and remove the compartment door.

  5. 2Zn4toLpvP5ipVED
    2Zn4toLpvP5ipVED
    RRKeD4Ca1cpYQOmQ
    5tht3ktne2qEocdh

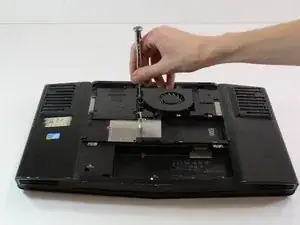

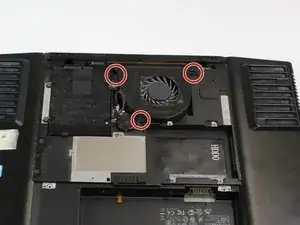

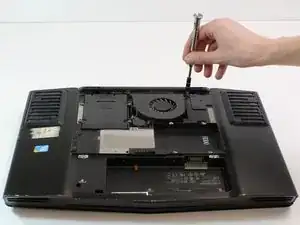

    • Loosen the three black Phillips #1 screws.

    • The screws are held to the fan by a washer and cannot be removed.

  6. y24si2il1HnZVAHB
    y24si2il1HnZVAHB
    b5FOnYSJnTKDRRQf

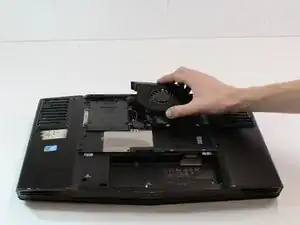

    • Use your hand to gently lift the fan from the laptop.

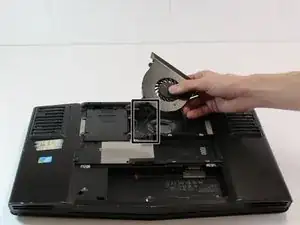

    • Careful not to pull too hard on CPU fan cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
