Alienware M17-R1 RAM Replacement

Written By: LXA054
  • Comments: 1
Alienware M17-R1 RAM Replacement

Difficulty

Moderate

Steps

7

Time Required

15 minutes

Introduction

The RAM is a vital component in the Alienware M17-R1. As larger programs are being released, they will require more memory, meaning that the RAM may need to be upgraded.

  1. IDm41KjMlB5RUP4h

    • Push the slider until the battery is released from its socket.

  2. TBFNPmG6wBOVMQNE

    • Lift the battery using your fingers.

    • It may be necessary to use a plastic opening tool.

    Where can I buy a replacement battery for this laptop?

    Tom Amaya -

  3. qeWUCooPfBJoPchO

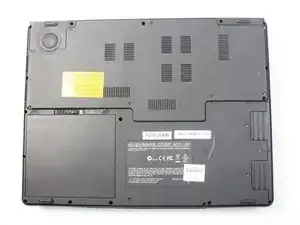

    • Place laptop down on a hard flat surface to begin the disassembly.

  4. Ts3GQYeLAAMSCRfs
    Ts3GQYeLAAMSCRfs
    EOQNpouIqS5TUeAo

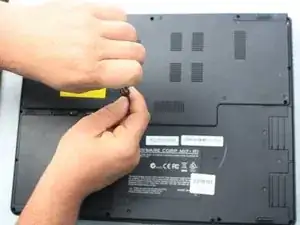

    • Remove the nine 3 mm screws that secure the cover using a Phillips #1 screwdriver.

  5. oRnFiELA4dnWYmsA

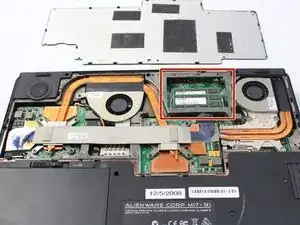

    • Once the cover is removed, locate the RAM compartment to begin the replacement.

  6. 2MSqVmodJIXydpKo
    2MSqVmodJIXydpKo
    Tkt2ZZkeMeSHPQu4

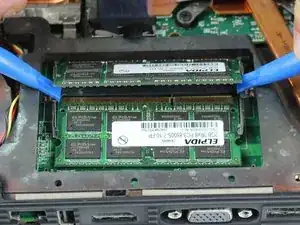

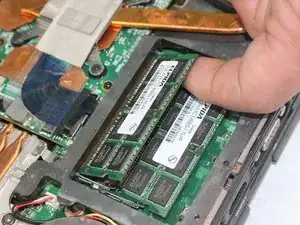

    • After locating the RAM, gently pull the two metal clips outward and lift the RAM card out of its socket.

    • The card will pop up once it has been released and can be removed.

  7. OyGnx1FVGBqQonYf

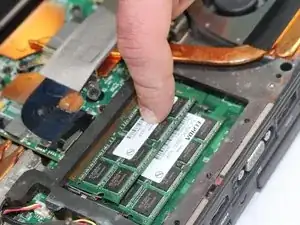

    • To insert the new RAM, place it on top of the socket and carefully apply downward pressure until it snaps into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
