Alienware M11xR2 Display Assembly Replacement

Written By: darrius
  • Comments: 0
Alienware M11xR2 Display Assembly Replacement

Difficulty

Moderate

Steps

12

Time Required

20 - 25 minutes

Introduction

How to remove and replace the Display Assembly.

  1. gCsGXutqssf4CcGh

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the antenna cables from the Mini-Card(s).

  2. UdVG2T6wiT2kiKpK

    • The routing of the Mini-Card antenna cables and remove them from the routing guides on the computer base.

  3. NKOjK3FUGWColneN

    • Turn the computer over and open the display as far as possible.

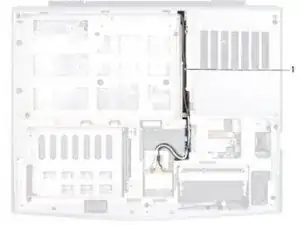

  4. o1YeFMXaFCE2iEuK

    • Pull the pull-tab to disconnect the display cable from the connector on the system board.

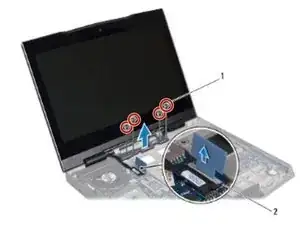

  5. CNvjNFHFeeIFFGBR

    • Remove the four screws that secure the display assembly to the computer base.

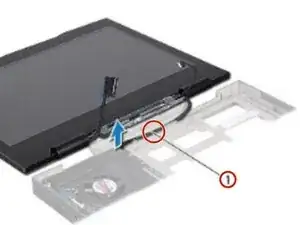

  6. msmPUI3OkiOpFxAt

    • Gently slide the Mini-Card antenna cables out through the slot on the computer base.

  7. PASlossItwkoqkWB

    • Lift the display assembly off the computer.

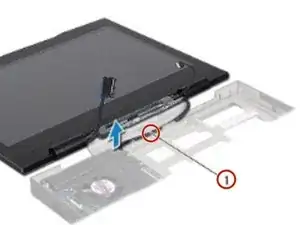

  8. AqBThmAvUIWLXWWN

    • Slide the antenna cables in through the slot on the computer base.

  9. XmwRJRTsuyvHAWtv

    • Place the NEW display assembly in position and replace the four screws that secure the display assembly to the computer base.

  10. NIkC2ZBmlVaG3eVT

    • Connect the display cable to the connector on the system board.

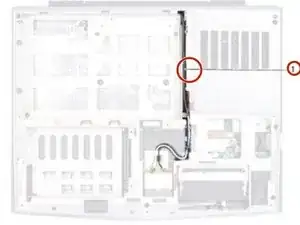

  11. PJ3QX63KZmEV62pC

    • Turn the computer over and route the Mini-Card antenna cables through the routing guides on the computer base.

  12. pJudvBAmCRq5EIN1

    • Connect the Mini-Card antenna cables to the Mini-Card(s).
