Acer TravelMate TMB115-M-C99B Touchpad Replacement

Written By: Tanvi Kharkar
  • Comments: 3
Acer TravelMate TMB115-M-C99B Touchpad Replacement

Difficulty

Moderate

Steps

16

Time Required

20 minutes

Introduction

If your laptop's touchpad is unresponsive because of external damage, use this guide to remove and replace your touchpad.

  1. mDG2eINwFHqZxEii

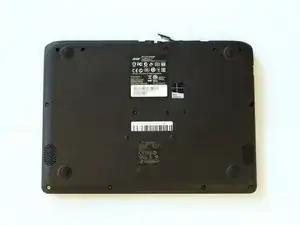

    • Turn off your laptop before starting.

    • Flip the laptop over so the model stickers face the ceiling.

  2. wLcm5pVBb6uuErn6
    wLcm5pVBb6uuErn6
    qCDGBsryyMBNCtcI
    Qwhkt1WjPX1sRrqc

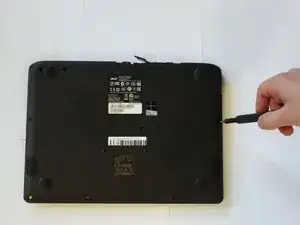

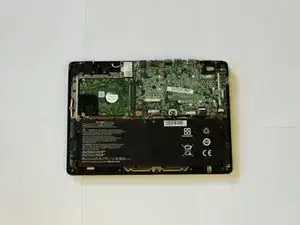

    • Remove the thirteen 6mm Phillips screws using the #0 screwdriver.

    • Remove the back of the laptop.

  3. PfBkSqWwyDGSuiqS

    • Remove the two 7mm Phillips screws from the battery using the #0 screwdriver.

  4. NSudQNpIr1KGIjPF
    NSudQNpIr1KGIjPF
    CMSX4yGDNrAOt6Ex

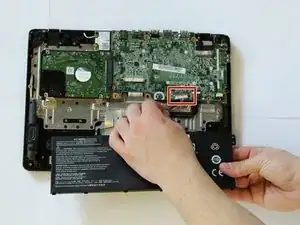

    • Unplug the battery from the motherboard.

  5. Ecfh1xnjteixRQ5y
    Ecfh1xnjteixRQ5y
    hklWKV5sDE3CmKNC
    kocd4vBFZReXhCyX

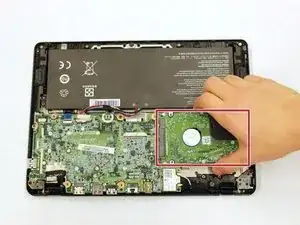

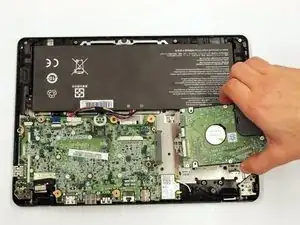

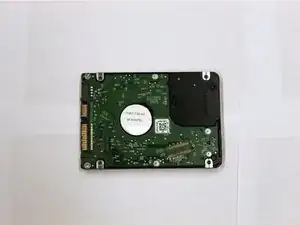

    • Carefully disconnect the hard drive from the motherboard.

  6. XdMOZAEKSswlN2aF

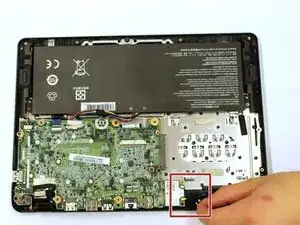

    • Disconnect the two wires from the Wi-Fi interface.

  7. vvnt21PNb3n2nYlW
    vvnt21PNb3n2nYlW
    3a5GM2kQIMHHOI2B

    • Remove one 6mm Phillips screw from the Wi-Fi interface using the #0 screwdriver.

  8. DaGrkZPoDIMuZ2D6

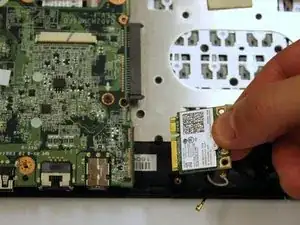

    • Remove the Wi-Fi interface from the motherboard.

  9. oIHYlG5ttqDdOQdh
    oIHYlG5ttqDdOQdh
    la3xFVbb3SfRg1Gq

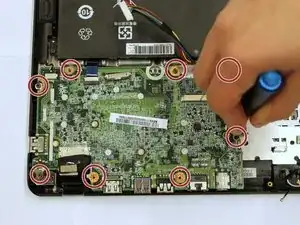

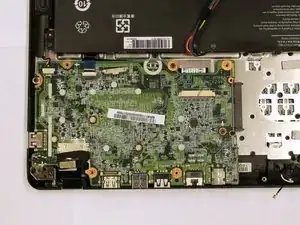

    • Remove the eight 7mm Phillips screws from the motherboard using the #0 screwdriver.

    You are missing a step in between 10 and 11:

    We had to remove four cables from the motherboard before removing it.

    Ani Svadjian -

  10. BJxxx6Ivm4cVYYRh
    BJxxx6Ivm4cVYYRh
    ODdlMPEpQOXm11Y2

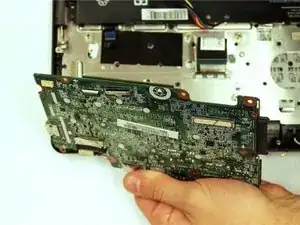

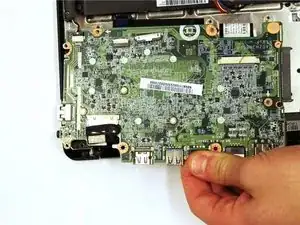

    • Remove the motherboard.

  11. 1bKCAcJjnESFViJG

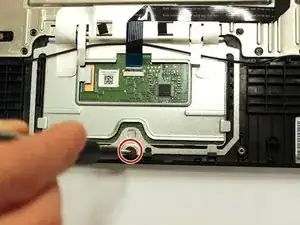

    • Remove one 6mm Phillips screw from the middle of the touchpad with the #0 screwdriver.

    How many screws?

    Ani Svadjian -

  12. KMaSIAxRBueV2nTe
    KMaSIAxRBueV2nTe
    HW1UBuxKtOMRqmZT

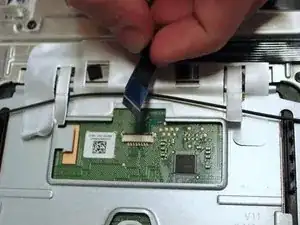

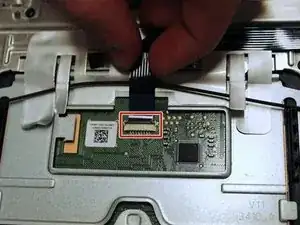

    • Remove the wire from the slot.

  13. X6sGvBV1PZVthYMo

    • Remove the stickers from the touchpad frame.

  14. RFUcCZnn1INLtnS1

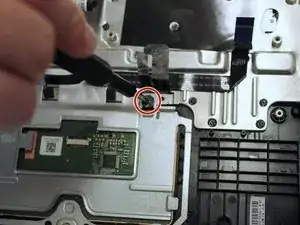

    • Remove one 6mm screw from the corner of the touchpad frame with the #0 screwdriver.

    Our group had to remove 2 screws.

    Ani Svadjian -

  15. 1EMwVlrduUKjYQHl
    1EMwVlrduUKjYQHl
    nXmnswYWqdBHl53N

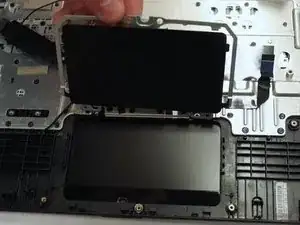

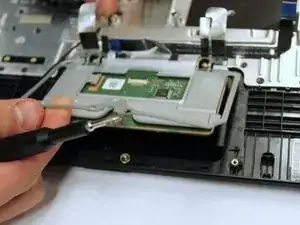

    • Lift up the touchpad frame.

  16. FaciZZ2uOfW4CwUv

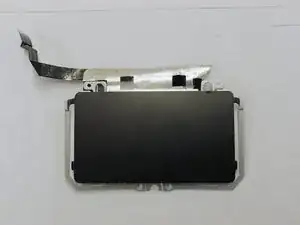

    • Remove the touchpad.

Conclusion

To reassemble your device, follow these instructions in reverse order.
