Acer Chromebook CB0311-1H-C1MX Speaker Replacement

Written By: Sami Suplizio
  • Comments: 0
Acer Chromebook CB0311-1H-C1MX Speaker Replacement

Difficulty

Easy

Steps

7

Time Required

No estimate

Introduction

This guide will demonstrate the process of removing the speakers for the Acer Chromebook CB0311-1H-C1MX. The speakers are responsible for properly playing sound from the device. If the laptop is not playing sound at the proper volume or quality, then replacing the speakers might resolve the issue.

Before replacing speakers, make sure to check device settings in order to ensure the disoriented sound is not the result of a settings issue.

  1. IT6RuSYiEUCQg6wf

    • Using a JIS #1 screwdriver, remove eleven 6.6 mm screws from the back cover.

  2. Awg2WNgf5FeQrTJu

    • Beginning at the hinges, use an iFixit Opening Tool to pry open the back case.

    • Continue using the iFixit Opening Tool around the entire edge of the case.

  3. 4ckROTbSmODbi5Hn

    • Using a JIS #1 screwdriver, remove all four 4.8 mm screws holding the battery in place.

  4. m3kVTBjjUOOVjGEI
    m3kVTBjjUOOVjGEI
    GhVoeDkBkOeoSPsf

    • Gently push on either side of the silver connector so that it no longer covers the battery cable.

    • Disconnect the battery cable by pulling it straight out.

    • This component is called the Flat Topped Connector.

  5. uCUht6gvUPTbOurh
    uCUht6gvUPTbOurh
    dt1MXZGffyUpSdxP

    • Lift and remove the battery from the laptop.

  6. JXNvk1qcqbTMJfKQ
    JXNvk1qcqbTMJfKQ
    lDMECRMWEfYuIgFo

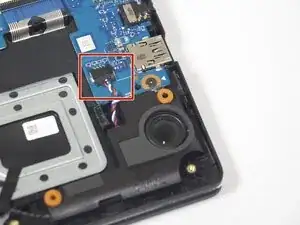

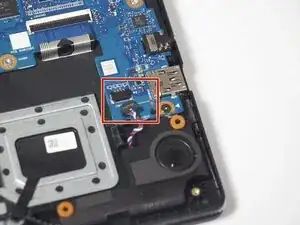

    • Disconnect the speaker cable from the motherboard by pulling it straight out.

  7. X1BHykmbZTSOPksh
    X1BHykmbZTSOPksh
    OSdJ3EH3Ix6aDHAq

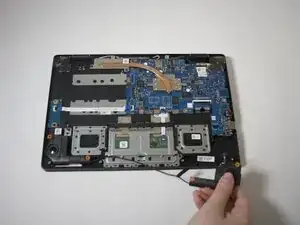

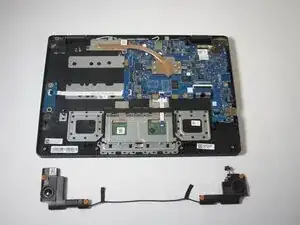

    • Lift the speaker out, taking care to unweave the cord from the metal prongs.

    • There may be tape holding down parts of the speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
