Acer Aspire a515-46 SSD Replacement

Written By: Am Persand
  • Comments: 0
Acer Aspire a515-46 SSD Replacement

Difficulty

Easy

Steps

10

Time Required

10 - 15 minutes

Introduction

Use this guide to replace the SSD on your Acer Aspire A515-46.

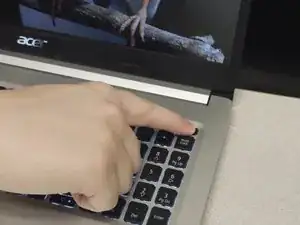

  1. lT2mPAX6Mq1NBApN

    • If laptop is not already off, hold power button for 5 seconds until screen shuts off.

    • If needed, backup any files to a USB or an external hard drive before turning off and replacing SSD.

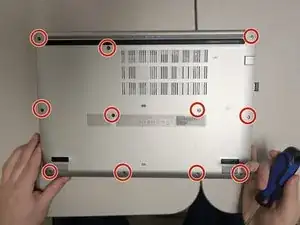

  2. X5tEDUTKkgkmJBFb

    • Flip the laptop over and locate the screws on the back panel.

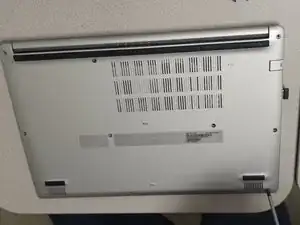

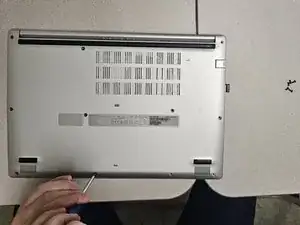

  3. RL3uBMtTJRwlWX6v
    RL3uBMtTJRwlWX6v
    PuAPeWxHHcrRsJWC
    W2tCZelhD3AYXo2m

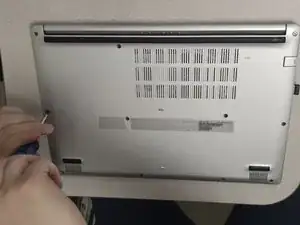

    • Using a Philips head screwdriver, remove all of the screws on the back panel.

  4. HK3OTC3IpBeBr2Wt
    HK3OTC3IpBeBr2Wt
    AGWPONyMUmD6obmK
    DTWb3AEhDAURldsQ

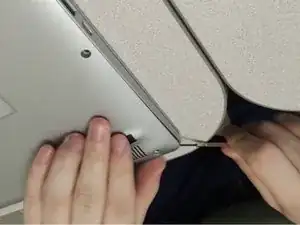

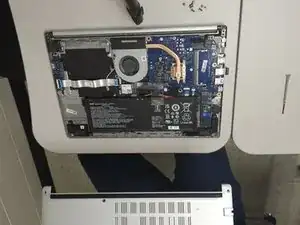

    • Use a small screwdriver or prybar to pry the back panel away from the laptop.

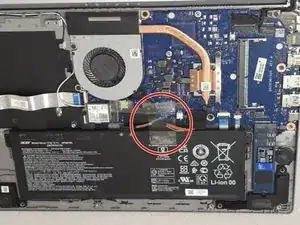

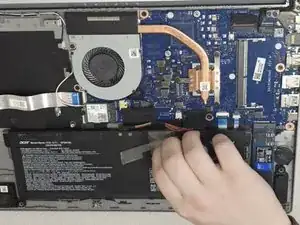

  5. tSXvJAnVrO6sxUfu
    tSXvJAnVrO6sxUfu
    Bq6RoWgbOb5BTftM

    • Remove the two pieces of tape holding the battery connector and wires.

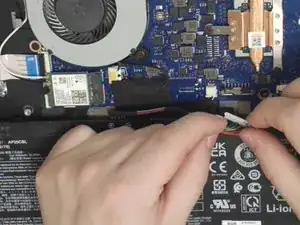

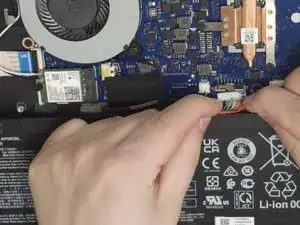

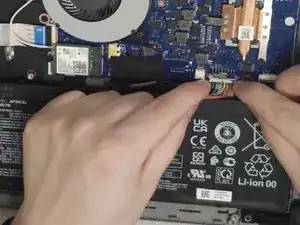

  6. wG66oWWAOZFPdDNq
    wG66oWWAOZFPdDNq
    N2qxSOQxHVGRKhB5
    EG2QHdiYcrFBLJiY

    • Using your fingernails, pinch the battery connector on both sides and pull it straight back until it is removed from the socket.

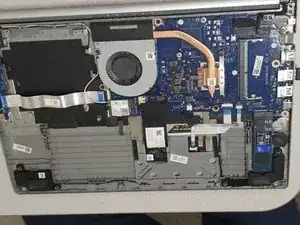

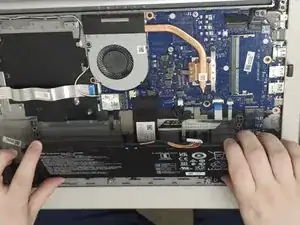

  7. v5EgX1S34rtrXyFx
    v5EgX1S34rtrXyFx
    faDrDl6fJGdtpWyT

    • Pull up and remove the battery from the compartment.

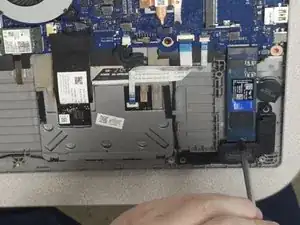

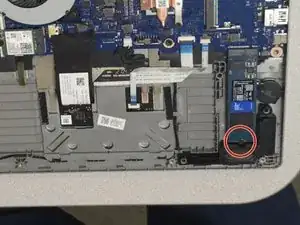

  8. BaGn3DEHoBDamrS5
    BaGn3DEHoBDamrS5
    5kLboJQSHUPZZmBn

    • Use a small Philips head screwdriver to remove the screw holding the bottom of the SSD.

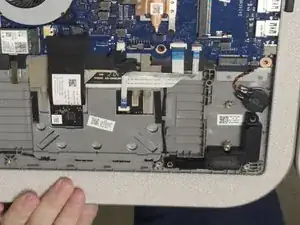

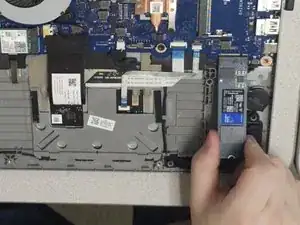

  9. pdoSpPZjGlDX1wSa
    pdoSpPZjGlDX1wSa
    tLM1tvDa2AjnhAUK

    • Pull the SSD straight back until it is removed from the socket.

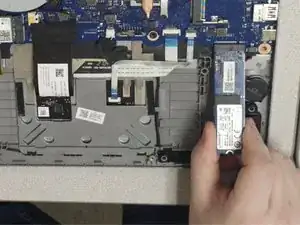

  10. XFgGYSMKw44JUMTq
    XFgGYSMKw44JUMTq
    4C32d3GiPDHydJIZ

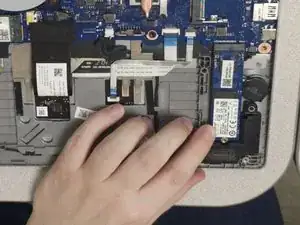

    • Insert the new SSD into the socket, making sure that the notch is on the right side of the SSD.

Conclusion

To reassemble your device, follow these instructions in reverse order.
