Acer Aspire S3-391-6046 Keyboard Replacement

Written By: Brian Jimenez
  • Comments: 0
Acer Aspire S3-391-6046 Keyboard Replacement

Difficulty

Moderate

Steps

10

Time Required

15 - 20 minutes

Introduction

  1. qJSLTwyPrLZkSH3F

    • Place laptop upside down.

  2. F1C3UWTDKkSUPZpU
    F1C3UWTDKkSUPZpU
    DNRCPLWMpXAvgk4D

    • Remove the twelve 5mm screws with a Phillips #1 screwdriver.

  3. Jjr1IZFqVhriCtmq

    • Lift cover upwards away from you.

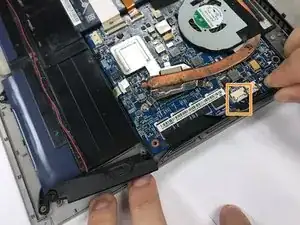

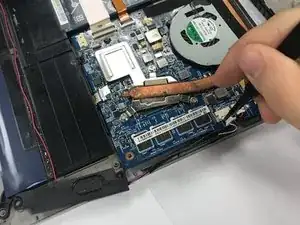

  4. UJaGbl4Ng6yyWrwM
    UJaGbl4Ng6yyWrwM
    rNFGw4KaPJgBTMEB
    DdBMMuDxNDWcksER

    • Remove the four Phillips #0 screws that are connected to the left and right speakers.

    • Carefully disconnect the wires that connect the speaker to the rest of the computer.

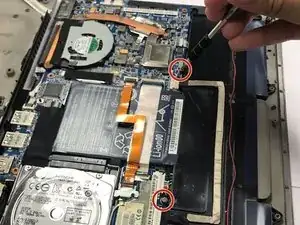

  5. YUP4Aopl2SCSZajf

    • Remove two Phillips #0 screws that are beside the ends of the gray wire.

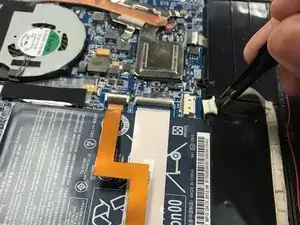

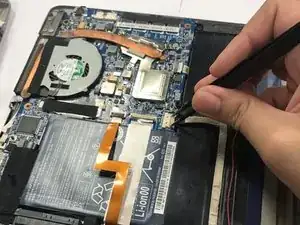

  6. tpvt1sVgpyNDiOyc
    tpvt1sVgpyNDiOyc
    5LQOmecACyHRcOmR
    2Ntj1RoFasqBEkgR

    • Remove the gray wire slowly with tweezers.

    • Carefully peel wire off.

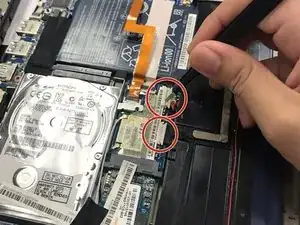

  7. VYgIfKTdIFveKdQf
    VYgIfKTdIFveKdQf
    dyB4FXB3MHTJy2Gq

    • Slowly remove the two wires that are to the left of the battery with tweezers in an upward pulling motion.

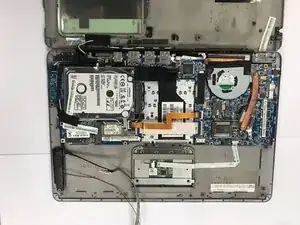

  8. KWrKCLlJR1bp12An
    KWrKCLlJR1bp12An
    TpaymxBHBSPJoF2W

    • Completely remove the battery out of its position.

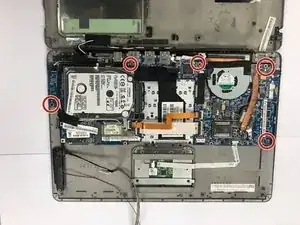

  9. Xgs2TJLVoY1qZnQg
    Xgs2TJLVoY1qZnQg
    sGXmEnw6UFyS3jTS

    • Remove the five Phillips #0 screws that are on the border of the laptop.

    • Disconnect the white wire that is below the fan.

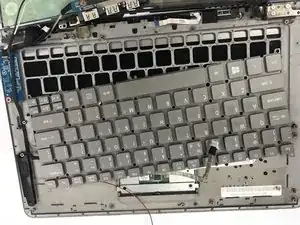

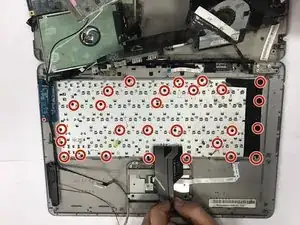

  10. 4OsbrKlSXuYW1jmU
    4OsbrKlSXuYW1jmU
    gduwOxY41rKK6XH6

    • Flip all of the circuits upwards.

    • Remove all Phillips #0 screws.

    • Remove the keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
