Acer Aspire S3-391-6046 Fan Replacement

Written By: Connor Talbot
  • Comments: 0
Acer Aspire S3-391-6046 Fan Replacement

Difficulty

Easy

Steps

6

Time Required

5 - 10 minutes

Introduction

If your Acer Aspire S3-391-6046 ultrabook is overheating, it might be a problem with the fan assembly. This is a guide for how to remove and replace it.

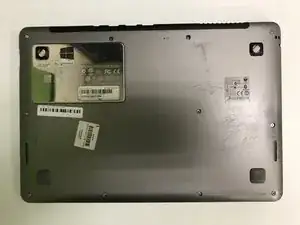

  1. qJSLTwyPrLZkSH3F

    • Place laptop upside down.

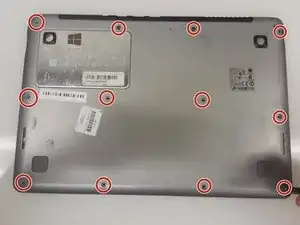

  2. F1C3UWTDKkSUPZpU
    F1C3UWTDKkSUPZpU

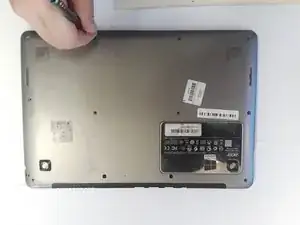

    DNRCPLWMpXAvgk4D

    • Remove the twelve 5mm screws with a Phillips #1 screwdriver.

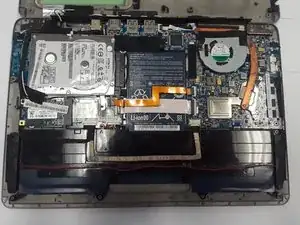

  3. Jjr1IZFqVhriCtmq

    • Lift cover upwards away from you.

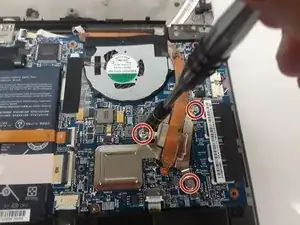

  4. KMs5v2OasCrwFhKO

    • Unscrew the three screws with a Phillips #0 screwdriver.

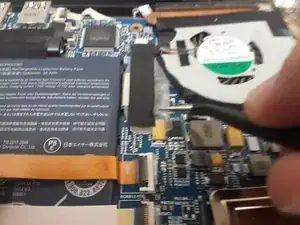

  5. ogOHNLtTGsbQhIvV

    • Use either your hands or the tweezers to gently peel back the tape.

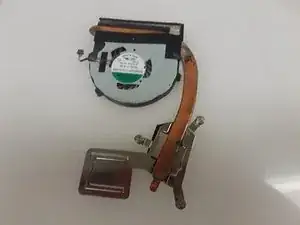

  6. eIoFttnxToGnGLK4
    eIoFttnxToGnGLK4
    6CXXj5ZiZkH1bVUU

    • Do not pull anything by the wires.

    • Use the tweezers to gently pull the small black plug out.

    • After the plug is out, you should be able to pull the fan assembly out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
