Acer Aspire One Cloudbook 14 AO1-431-C8G8 Display Replacement

Written By: Joseph
  • Comments: 1
Acer Aspire One Cloudbook 14 AO1-431-C8G8 Display Replacement

Difficulty

Moderate

Steps

10

Time Required

3 - 5 minutes

Introduction

The display is the main interaction with the user providing image. This outline will show you how to remove and replace the display from the device.

  1. HTNhUwW4t1bLL3yp
    HTNhUwW4t1bLL3yp
    FnbaUxQHHLoRVAOk

    • Remove the ten 7mm Phillips #0 screws from the bottom.

  2. n6f6saQgXKH2SS5S
    n6f6saQgXKH2SS5S
    RTMYXaAdjUutcikQ

    • Insert a plastic opening tool under the bottom cover and slid it around the perimeter until all of the clips release.

    Everything goes fine until trying to loosen all corners

    Armando Martinez -

  3. STVfZOrVmxshCddG
    STVfZOrVmxshCddG
    PUjoK1pOv3DlbFX6

    • Remove the two 5mm Phillips #0 screws from the battery.

  4. f1AM6gSheqiRjOL3
    f1AM6gSheqiRjOL3
    5x4Oatc6OpB2Eqn2
    6JU5MwDAQGOawYSU

    • Use a spudger to flip up the retaining flaps on the ribbon cable ZIF sockets.

    • Remove the ribbon cables from the sockets.

  5. mRIMsmHvBnLdK1lp
    mRIMsmHvBnLdK1lp
    klFvRyfHNx3RPSVc
    QIdE2SXHbZYC2ObM

    • Disconnect the battery from the motherboard.

    • Remove the battery.

  6. H1MvKGRPSNWSX5VN
    H1MvKGRPSNWSX5VN
    uFCiRkxxiORF6OxV

    • The battery is installed in these pictures but should always be removed before any part replacement.

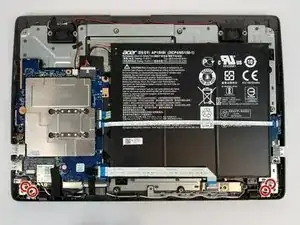

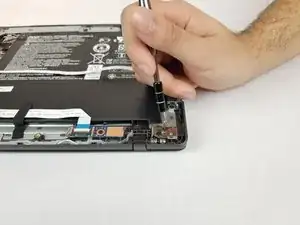

    • Remove the four 5mm Phillips #0 screws from the display hinge.

  7. NSDTehhCm2HvClsc
    NSDTehhCm2HvClsc
    MVnWdbCBgE36XMpt

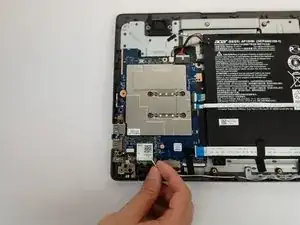

    • Disconnect the two antenna cables from the Wi-fi card.

  8. QBLaYUH5ZGsXHfKc
    QBLaYUH5ZGsXHfKc
    BjZvrXsysClHwOC1

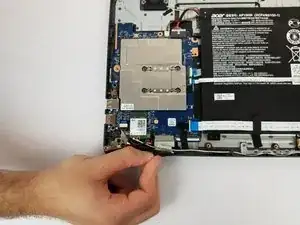

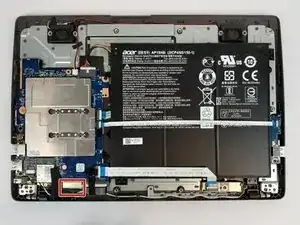

    • Disconnect the display cable by pulling it down and towards you.

  9. NAQeQmeTRXRBYhQB
    NAQeQmeTRXRBYhQB
    W6RmEF1fPfL2ETOS

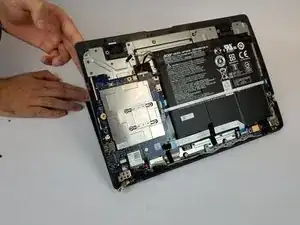

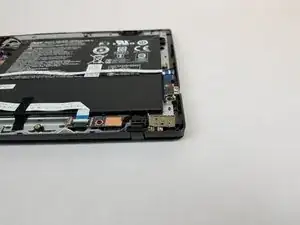

    • Lift the bottom half of the computer away from the screen while keeping the screen flat on the table surface.

    • This will allow the hinges holding the screen in place to lift up.

  10. s1fFmBp4UYQ3OooC

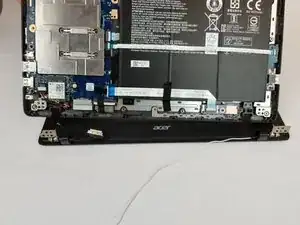

    • While the screen is flat on the surface, slide the bottom half of the computer towards the top of the screen to separate the two halves.

    • The screen is now completely removed from the bottom half of the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
