Acer Aspire One Cloudbook 11 AO1-131-C7DW Back Panel Replacement

Written By: John Hasenbein
  • Comments: 0
Acer Aspire One Cloudbook 11 AO1-131-C7DW Back Panel Replacement

Difficulty

Moderate

Steps

5

Time Required

5 minutes

Introduction

  1. vwMyADgtlfG1d4RH
    vwMyADgtlfG1d4RH
    NQAKqKcqSP4DVpEr
    kcyNegJuCgESjRuq

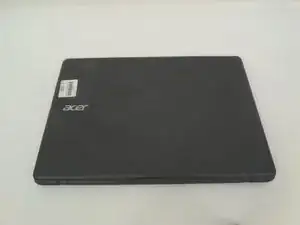

    • Power the laptop off.

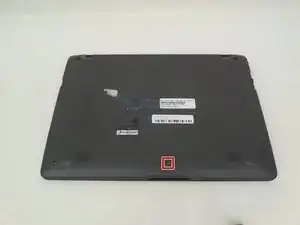

    • Flip the laptop over and position it so the opening faces you.

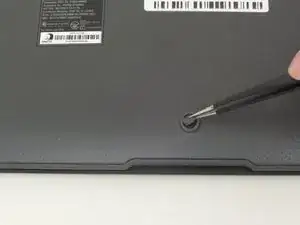

    • Remove the rubber foot located near the opening side of the device using tweezers.

  2. INxIWjX5jAWIcZHM
    INxIWjX5jAWIcZHM
    111Ze5Gc1MjagZVJ

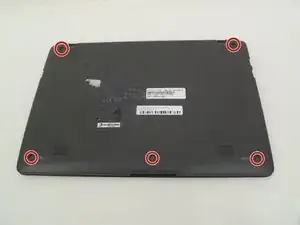

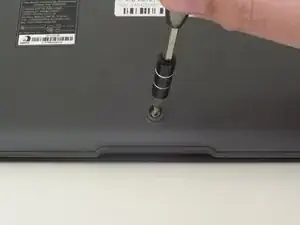

    • Unscrew the five 5-mm screws using the PH0 screwdriver.

  3. HDN2cBJJH51xbZiD
    HDN2cBJJH51xbZiD
    yPWMN5kXfLJtRMPN
    POwmt42WJnbn3PHt

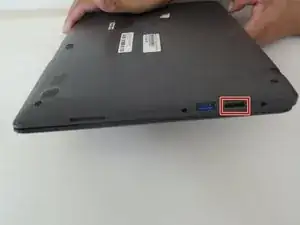

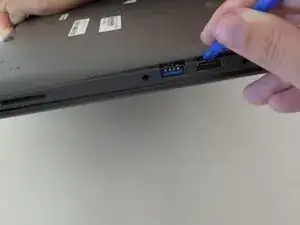

    • Identify the HDMI port located in the side of the laptop opposite to the power button.

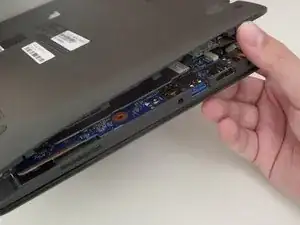

    • Insert the plastic opening tool into the divet of the back panel located above the HDMI port.

    • Pry along the laptop frame until the back panel comes loose.

    • Do not pull the back panel too hard as the battery is still connected to the back panel and the motherboard. This can damage your device.

  4. ZnKBsZkCUjQWVxbQ
    ZnKBsZkCUjQWVxbQ
    IntlJqHdhIuq5GUU

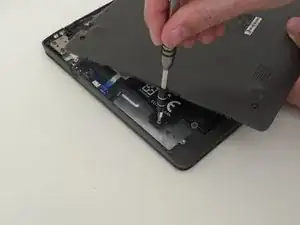

    • Rotate the device so the opening faces you again.

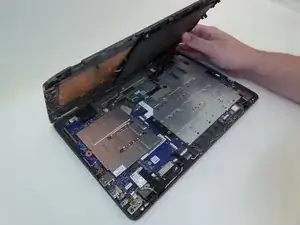

    • Hold the back panel away from the laptop and remove the 4-mm screw using the PH0 screwdriver.

    • This screw is fastening the battery to the laptop.

    • Lift the back panel gently.

  5. DZYEVqIAdADVqHXp
    DZYEVqIAdADVqHXp
    Y2cwIAQmV5sWkKn1

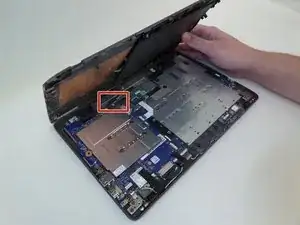

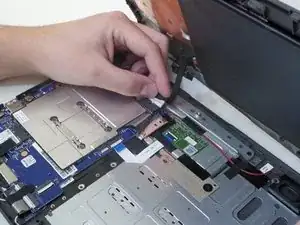

    • Unplug the cable that connects the battery to the motherboard.

    • Detach the back panel, which still includes the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
