Acer Aspire One 751h-1948 Hard Drive Replacement

Written By: Francisco Monteiro Junior
  • Comments: 0
Acer Aspire One 751h-1948 Hard Drive Replacement

Difficulty

Very easy

Steps

5

Time Required

5 minutes

Introduction

This guide will help you replace the hard drive the Acer Aspire One 751h-1948.

  1. CjInhNYHHZFTGRHX

    • Close the laptop and flip it over to view the back of the laptop.

  2. tFNBZigEnvLUY2PH
    tFNBZigEnvLUY2PH
    ruUHYkaNhpDMFYdi
    kdOsWkq1bwcXfZ2r

    • Unlock the right side of the battery by sliding the battery lock to the right. Then slide the left lock to the left and remove the battery.

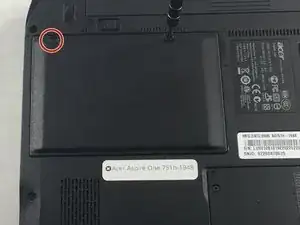

  3. 3XoIwbXQy3yLHNHE

    • Unscrew the Phillips 0# (M2 L2.5 mm) screw and remove the cover panel.

    • These screws will not come out all the way.

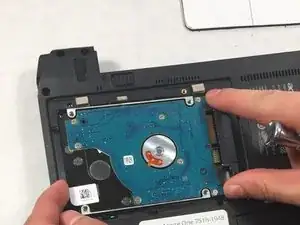

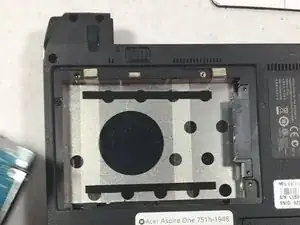

  4. TpLUY3GqwmgXqjbm
    TpLUY3GqwmgXqjbm
    4vjOyZQYohNKFY4p
    5xyYQ3gtjck2TLFY

    • Remove the hard drive by sliding it to the left and pull it out.

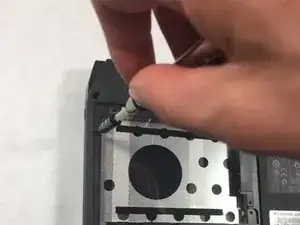

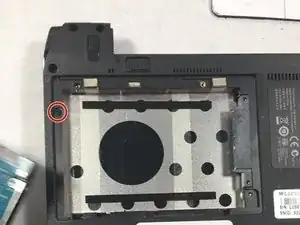

  5. BHHS1ZGBZRfenPsI
    BHHS1ZGBZRfenPsI
    IBW1sNVWegMeEyvB

    • Unscrew the Phillips #0 (M2-L2.5 mm) screws.

Conclusion

To reassemble your device, follow these instructions in reverse order.
