Acer Aspire E5-573G RAM Replacement

Written By: Alex Bahm
  • Comments: 0
Acer Aspire E5-573G RAM Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 30 minutes

Introduction

Guide on switching out the ram on the Acer Aspire E5-573G. Useful for replacing faulty ram, adding a new stick of ram, or upgrading RAM.

  1. ORXgJEhODREodthd

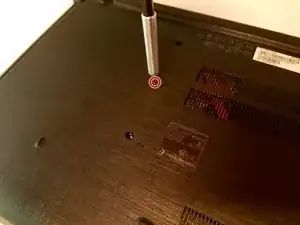

    • Ensure your device is OFF before beginning this procedure.

    • Unscrew the 5 mm Phillips head screw holding the drive in place.

  2. dCdCIaFFYygPdAbA

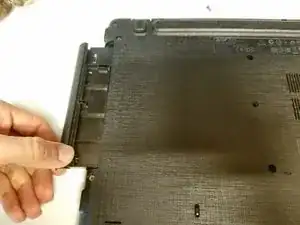

    • Pull out the disk drive.

  3. P1NDu1oLEtlAiUOc
    P1NDu1oLEtlAiUOc
    FlQxEDIGRdOEnAAk

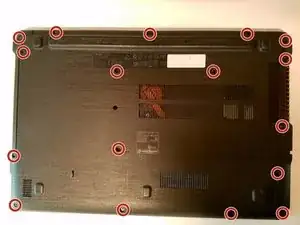

    • Unscrew all 17 (5mm) Philips head screws from the bottom.

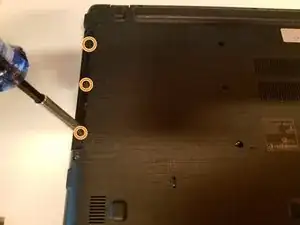

    • Unscrew the 3 (2.5mm) Philips head screws underneath the optical drive.

  4. FDlV3YUake1xv1TG
    FDlV3YUake1xv1TG
    IwRDc2RnvNLMNTZi

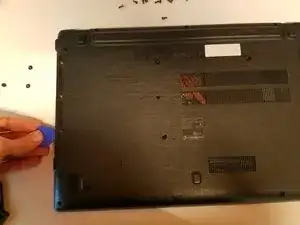

    • Run a pick around the edge of the laptop (between the two parts) to open it.

    • Lift the left side of the case up and unplug the speaker cable before fully taking the bottom off.

  5. AXKd1AMRaYJcWId4
    AXKd1AMRaYJcWId4
    ILuPJVAAji3KD1DK

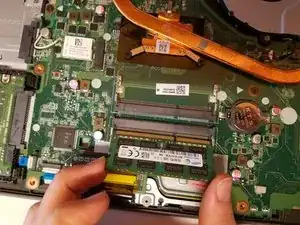

    • Release the two holding pins.

    • Pull out the ram.

Conclusion

To reassemble your device, follow these instructions in reverse order.
