Acer Aspire E5-571-58CG Power Jack Replacement

Written By: Aliana Johnson
  • Comments: 0
Acer Aspire E5-571-58CG Power Jack Replacement

Difficulty

Moderate

Steps

8

Time Required

25 minutes

Introduction

A faulty power jack may be causing your laptop to not charge properly, and it may need to be replaced. This guide will help you through this process.

  1. 5FehMJVpg664WPjR
    5FehMJVpg664WPjR
    U1BDFySEk2fXxgIY

    • Make sure the laptop is powered off.

    • Flip the laptop over and locate the battery release switch.

    • Insert the pointed end of the spudger into the battery release switch.

    • Push the battery release switch to the right.

  2. IaBNMwg6bTKRRAXG
    IaBNMwg6bTKRRAXG
    MEXg5sc3JEORnKfF
    KnbBeAhugPprJHFi

    • While the battery release switch is pushed to the right, carefully slide the battery out of its socket.

  3. tIRCCksuonvyvHpd
    tIRCCksuonvyvHpd
    XsXmenKqwLXfGrpq
    THxrHQEunpDegsKZ

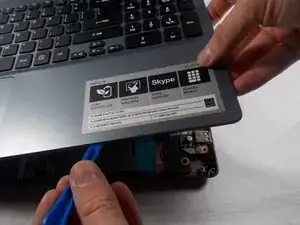

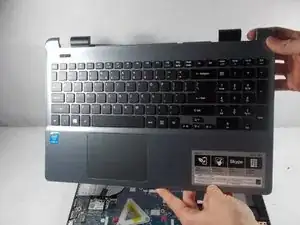

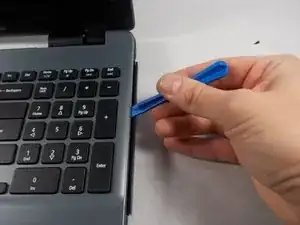

    • Remove the top panel of the laptop with the plastic opening tool.

  4. EGNMrtZ1yiK1fZwa
    EGNMrtZ1yiK1fZwa
    vCVHO2usM5RTfGOf

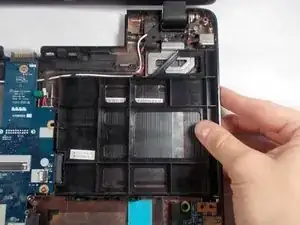

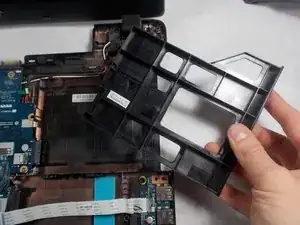

    • Remove the plastic safeguard from the CD drive slot.

  5. EpZTt5LCKnNYBwNd
    EpZTt5LCKnNYBwNd
    gsurjUW2uApaALZa
    HT24umsNiILEOZe1

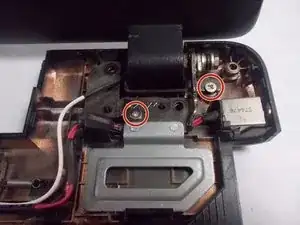

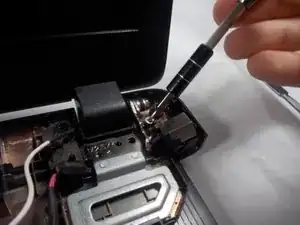

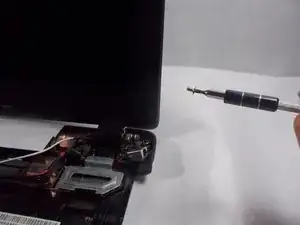

    • Remove the marked screws with the JIS #00 screwdriver.

  6. WPZVIhIyKhNV6I1l
    WPZVIhIyKhNV6I1l
    krXjeSHVpHhLgrpZ

    • Disconnect the opposite end of the power jack from the motherboard by carefully pulling the wire.

  7. EFxSFHciG5yDDZV5
    EFxSFHciG5yDDZV5
    HPSBMbVQac3xZSJk

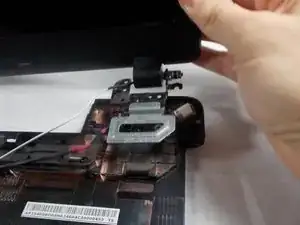

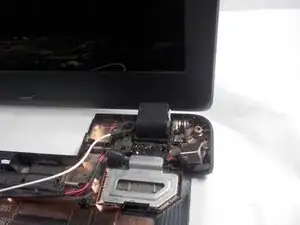

    • Lift the bottom right side of the screen to move the metal plate covering the power jack.

  8. EokN34HFkp2QlGmt
    EokN34HFkp2QlGmt
    BF1HftfTE4AN2Idh

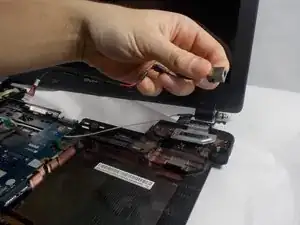

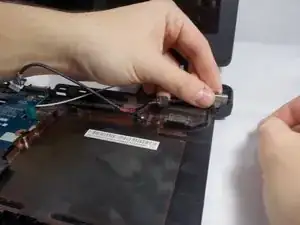

    • Carefully lift the power jack out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
